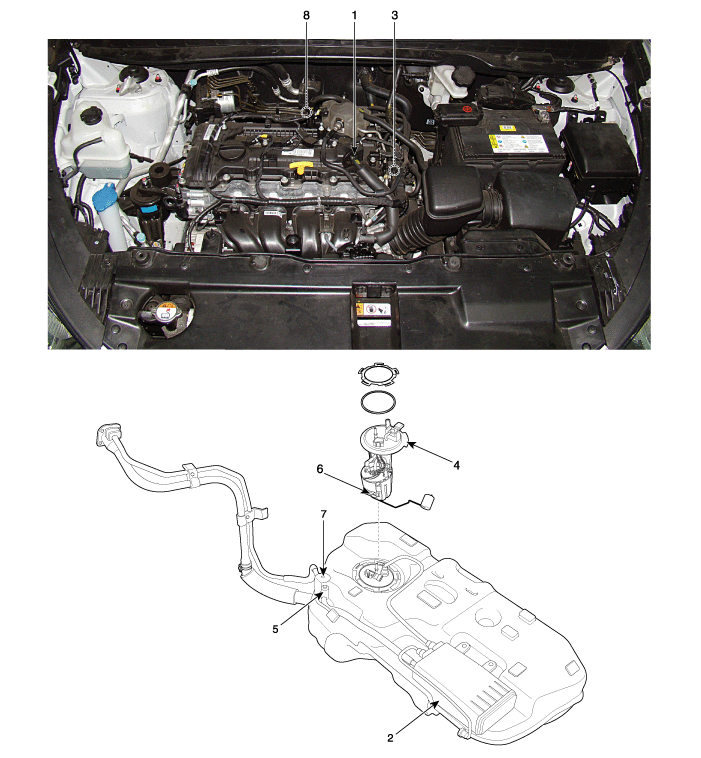

Components Location

1. PCV valve
2. Canister
3. Purge control solenoid valve (PCSV)
4. Fuel tank pressure sensor (FTPS)

5. Canister close valve (CCV)
6. Fuel level sender (FLS)
7. Fuel tank air filter
8. Catalytic converter (CCC Type)

1. PCV Valve	2. Canister

3. Purge Control Solenoid Valve (PCSV)	4. Fuel Tank Pressure Sensor (FTPS)

5. Canister Close Valve (CCV) 7. Fuel Tank Air Filter	6. Fuel Level Sender (FLS)

8. Catalytic converter (CCC Tyep)
