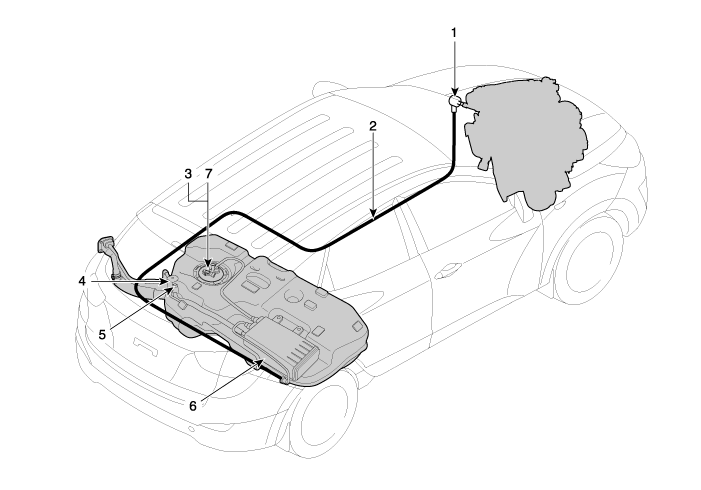

Components Location

1. Purge Control Solenoid Valve (PCSV)
2. Vapor line
3. ORVR valve
4. Fuel tank air filter

5. Canister Close Valve (CCV)
6. Canister
7. Fuel Tank Pressure Sensor (FTPS)

Schematic Diagrams

Schematic Diagram Canister The Canister is filled with charcoal and absorbs evaporated fuel vapor from the fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold by t ...

Repair procedures

Inspection [EVAP. Leakage Test] 1. Select "Evap. Leakage Test". 2. Proceed with the test according to the screen introductions. ...
