Hyundai Tucson: Clutch & Brake / Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Clutch & Brake / Components and Components Location

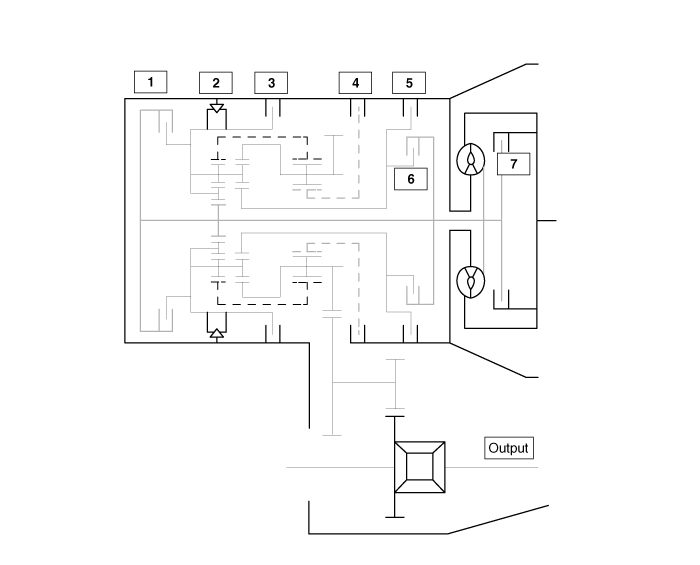

Components Location

1. Overdrive clutch (OD/C)
2. One way clutch (OWC)
3. Low & Reverse brake (LR/B)
4. Underdrive brake (UD/B)

5. 26 brake(26/B)
6. 35R clutch (35R/C)
7. Damper clutch (D/C)

Description and Operation

Description The 6-spd automatic transmission consists of an overdrive clutch (OD/C), a one-way clutch (OWC), a lower and reverse brake (LR/B), an underdrive brake (UD/B), a 26 brake (26/B), and ...

Flow Diagram

Power Flow Chart P,NUD/BLR/B26/B35R/COD/COWCx x Direction of Rotation xLower & Reverse Brake (LR/B) Activation > Overdrive (O/D) Hub Lock > Mid & Rear P/C Lock xInput Shaft Rotatio ...
