Hyundai Tucson (LM) 2010-2015 Service Manual / Suspension System / Tire Pressure Monitoring System / Components and Components Location

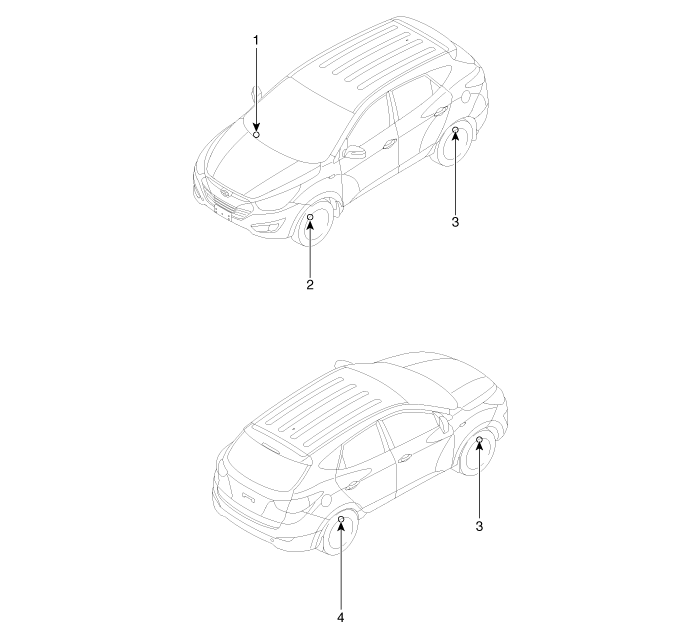

Components

1. Receiver
2. TPMS Sensor
3. TPMS Sensor

4. TPMS Sensor
5. TPMS Sensor

Tire Pressure Monitoring System

...

Description and Operation

Description TREAD Lamp - Tire Under Inflation / Leak Warning. 1. Turn on condition A. When tire pressure is below allowed threshold B. When rapid leak is detected by the sensor. C. ...
