Hyundai Tucson: Cylinder Block / Cylinder Block Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Mechanical System / Cylinder Block / Cylinder Block Components and Components Location

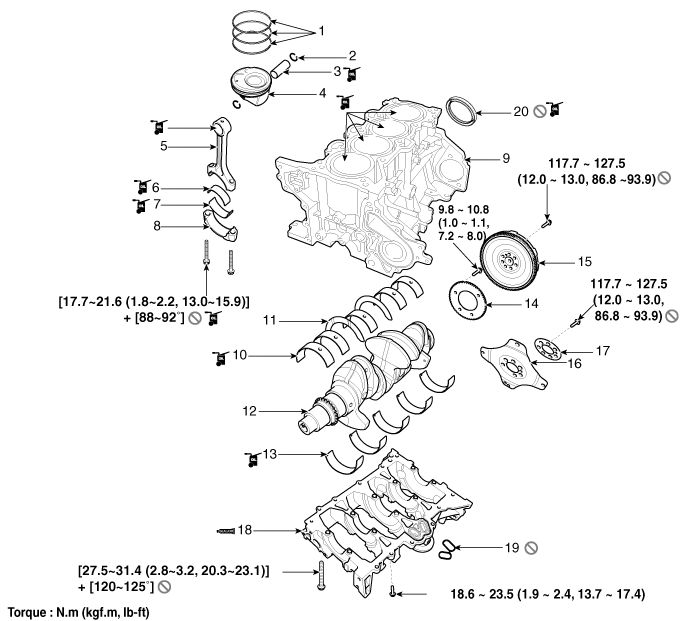

Components

1.  Piston ring
2.  Snap ring
3.  Piston pin
4.  Piston
5.  Connecting rod
6.  Connecting rod upper bearing
7.  Connecting rod lower bearing
8.  Connecting rod bearing cap
9. Cylinder block
10. Crankshaft upper bearing
11. Crankshaft thrust bearing
12. Crankshaft
13. Crankshaft lower bearing
14. CKPS (Crankshaft position sensor) wheel
15. Flywheel
16. Drive plate
17. Adapter plate
18. Lower crankcase
19. Gasket
20. Rear oil seal
