Hyundai Tucson: Fuses / Engine compartment panel fuse replacement

Hyundai Tucson (LM) 2010-2015 Owners Manual / Maintenance / Fuses / Engine compartment panel fuse replacement

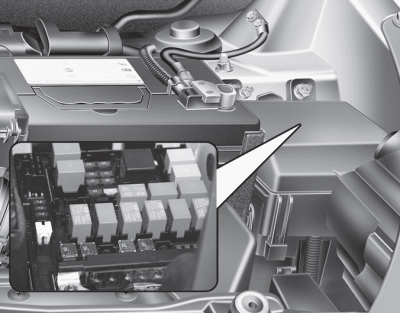

1. Turn the engine off.

2. Turn all other switches OFF.

3. Remove the fuse panel cover by pressing the tap and pulling up.

4. Remove and check the suspected fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

Main fuse

If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel cover by pressing the tap and pulling it up.

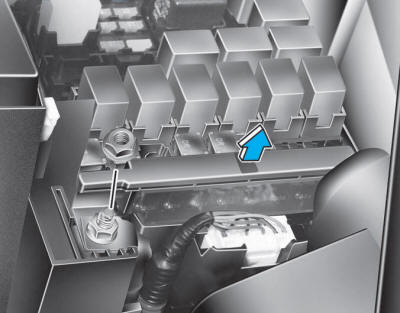

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the main fuse is blown, consult an authorized HYUNDAI dealer.

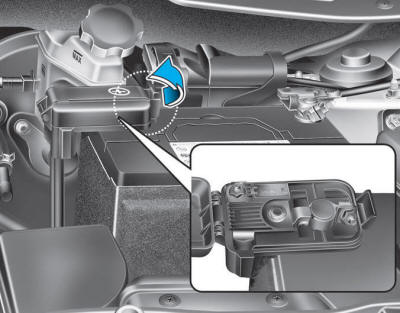

Multi fuse

If the multi fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel cover by pressing the tap and pulling up.

4. Remove the bolts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the multi fuse is blown, consult an authorized HYUNDAI dealer.
