Components

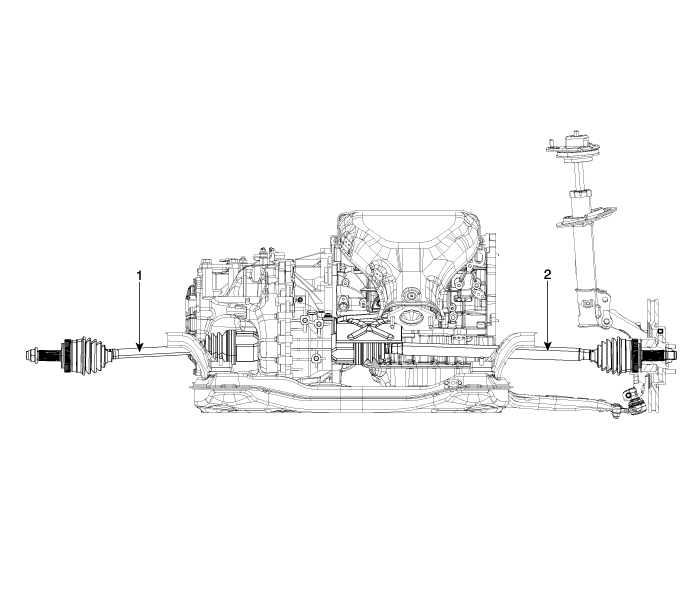

[THETA II 2.4 2WD]

1. Driveshaft (LH)
2. Driveshaft (RH)

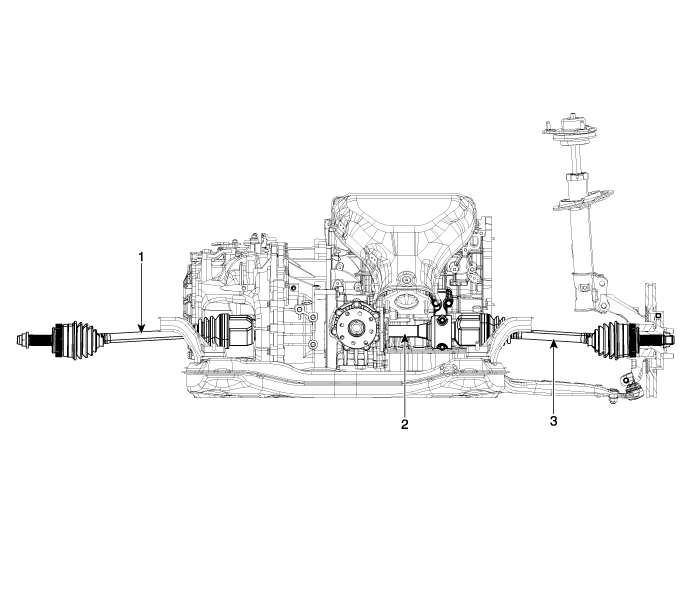

[NU 2.0 / THETA II 2.4 4WD]

1. Driveshaft (LH)
2. Inner shaft bearing bracket
3. Driveshaft (RH)

Components

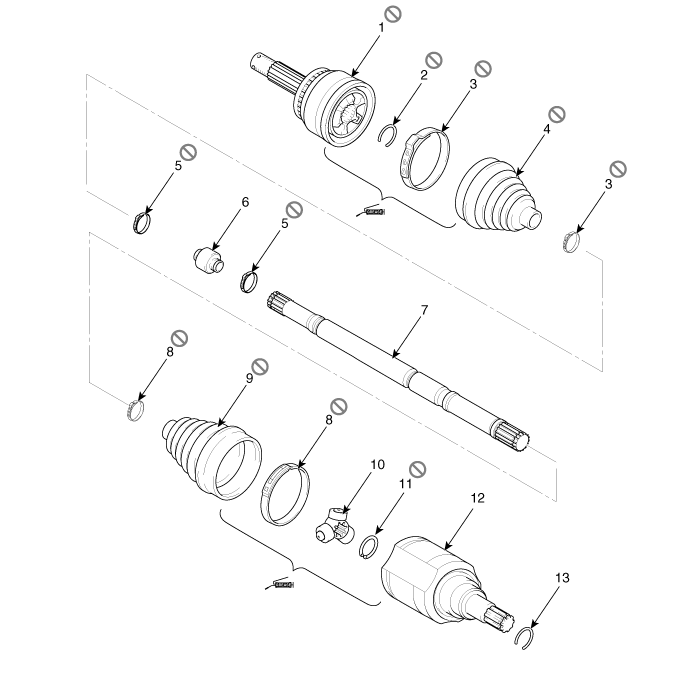

[LH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip
12. TJ housing
13. Circlip

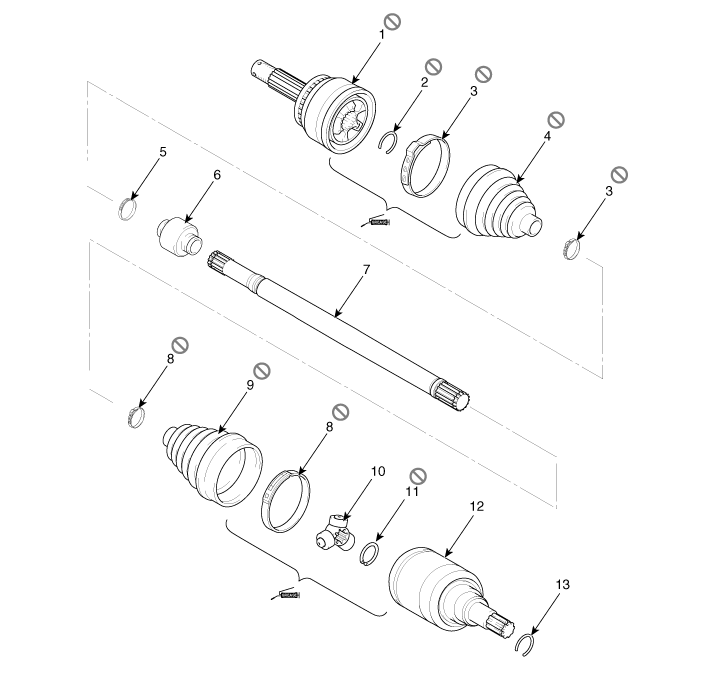

[RH]

1. BJ assembly
2. Clip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Circlip
12. TJ housing
13. Circlip

Driveshaft Assembly
...

Front Driveshaft Repair procedures
