Hyundai Tucson: Engine Control System / Fuel Pressure Control Valve Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve Schematic Diagrams

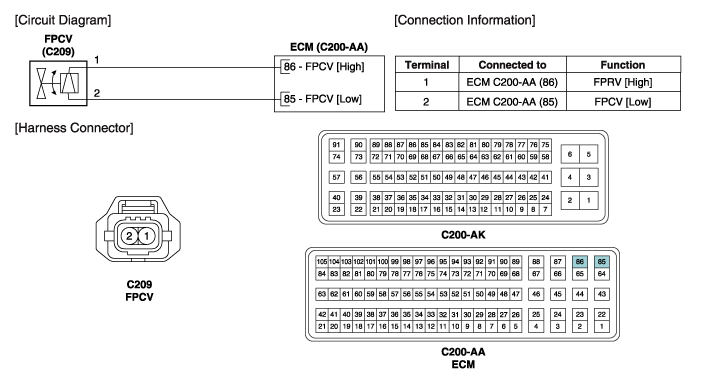

Circuit Diagram

(M/T)

(A/T)

Fuel Pressure Control Valve Troubleshooting

Signal Waveform ...

Fuel Pressure Control Valve Repair procedures

Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. 3. Measure resistance between the fuel ...
