Hyundai Tucson: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams

Circuit Diagram

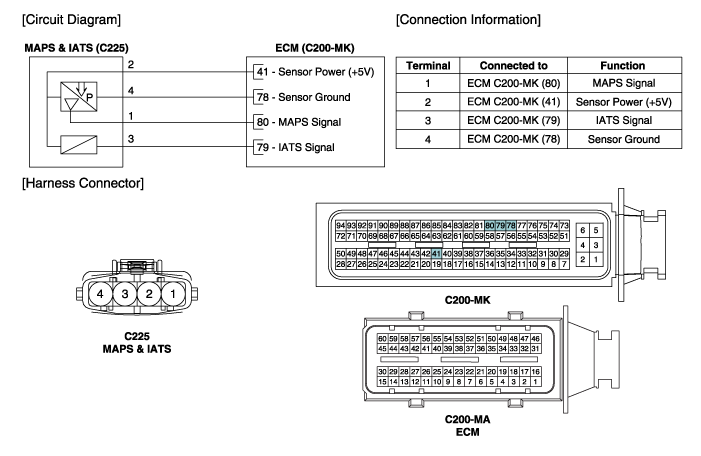

(M/T)

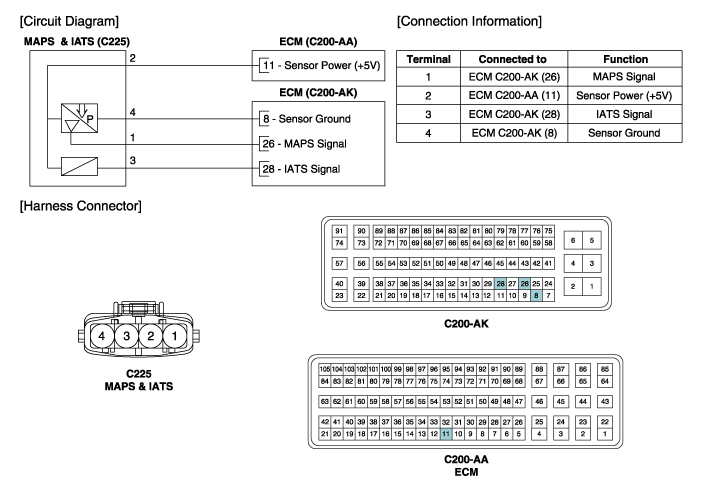

(A/T)

Manifold Absolute Pressure Sensor (MAPS) Troubleshooting
Signal Waveform ...

Manifold Absolute Pressure Sensor (MAPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Specification: Refer to "Specification" Removal 1. Tur ...
