Hyundai Tucson: Brake System / Master Cylinder Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / Brake System / Master Cylinder Components and Components Location

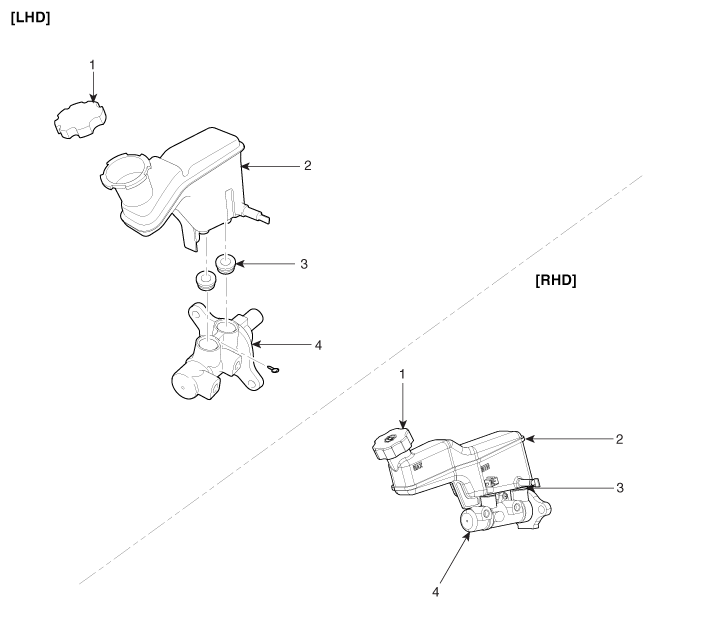

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...

Master Cylinder Repair procedures
Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the battery positive terminal and them remove the battery. 3. Disconnect the ECM connector ...
