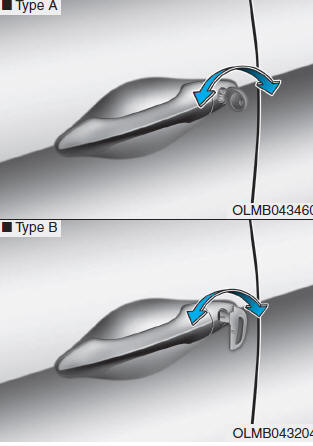

Turn the key toward the rear of the vehicle to unlock and toward the front of the vehicle to lock.
If you lock the door with a key, all vehicle doors will lock automatically. From the driver’s door, turn the key to the right once to unlock the driver’s door and once more within 4 seconds to unlock all doors.
Once the doors are unlocked, they may be opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that doors are closed securely.
✽ NOTICE
You can change the system to the central door unlock mode (unlock all doors by turning the key to the right once). If you want this feature, perform the following:
Unlock mode conversion (two stage unlock mode ↔ central door unlock mode)
The unlock mode changes alternately by pressing the lock button and unlock button on the remote key (or smart key) at the same time for 4 seconds or more. The hazard warning lights will blink four times to indicate that the mode conversion is completed.
Remote keyHyundai Tucson (LM) 2010-2015 Service Manual: Rear Differential Carrier Repair procedures
Replacement
1.
Drain the differential gear oil.
2.
Remove the rear drive shaft.
3.
Remove the propeller shaft.
4.
Disconnect the coupling control connector (A).
5.
Support the differential assembly (A) with the jack (B).
Tightening torque :
68.6 ~ 88.3N.m (7.0 ~ 9.0kgf.m , 5 ...
Hyundai Tucson (LM) 2010-2015 Service Manual: Description and Operation
Description
The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves).
The oil pump is powered by the engine. ATF passes through the
oil filter and gets distributed along the oil channels. The oil becomes
highly pressurized as it exits th ...
