Hyundai Tucson: Mirrors / Outside rearview mirrors

Your vehicle is equipped with both lefthand and right-hand outside mirrors.

WARNING

WARNING

Do not adjust or fold the outside rearview mirrors while driving. This may cause loss of vehicle control resulting in an accident.

CAUTION

Adjusting the rearview mirrors:

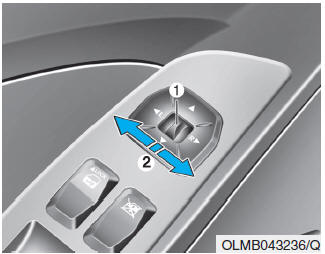

Press either the L (driver’s side) or R (passenger’s side) button (1) to select the rearview mirror you would like to adjust.

Use the mirror adjustment control (2) to position the selected mirror up, down, left or right.

After adjustment, press the L or R button (1) again to prevent inadvertent adjustment.

CAUTION

Electric chromic mirror (ECM) with HomeLink® system, compass and Blue Link® (if equipped)
Your vehicle may be equipped with a Gentex Automatic-Dimming Mirror with a Z-Nav™ Electronic Compass Display and an Integrated HomeLink® Wireless Control System. During nighttime driving, this ...

Folding the outside rearview mirrors
To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle. ...
