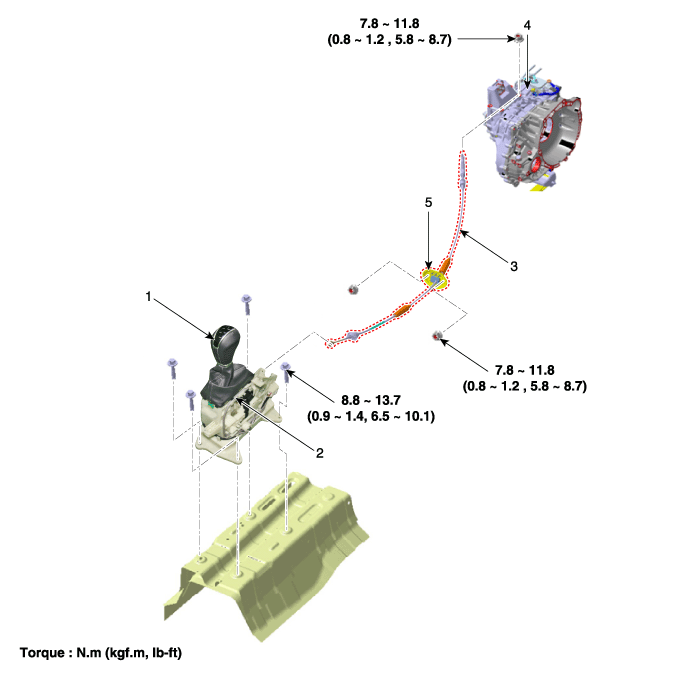

Components

1. Shift lever knob
2. Shift lever assembly
3. Shift cable

4. Manual control lever
5. Shift cable retainer

Shift Lever Repair procedures

Removal 1. Pull the knob (A) in the direction of "F" and remove it, and then remove the console upper cover. 2. Remove the console. (Refer to Body - "Floor console") 3. Disconnect the con ...

Shift Cable Repair procedures

Removal 1. Remove the console. (Refer to Body - "Floor console") 2. Disconnect the shift cable (A) from the shift lever. 3. Remove the shift cable assembly in the vehicle after removing t ...
