Removal

1.	Pull the knob (A) in the direction of "F" and remove it, and then remove the console upper cover.

2.	Remove the console. (Refer to Body - "Floor console")

3.	Disconnect the connector (A) from the shift lever.

4.	Disconnect the shift cable (A) from the shift lever.

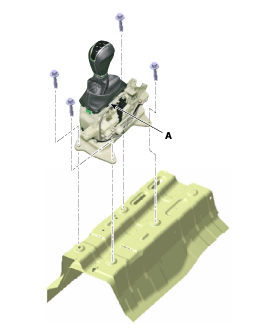

Remove the shift lever (A) after removing the bolts.

Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Installation

Installation is the reverse of removal.

When installing, set room side Shift lever and T/M side manual control lever to N position.

Shift Lever Components and Components Location

Components 1. Shift lever knob 2. Shift lever assembly3. Shift cable4. Manual control lever5. Shift cable retainer ...

Shift Cable Components and Components Location

Components 1. Shift lever knob 2. Shift lever assembly3. Shift cable4. Manual control lever5. Shift cable retainer ...
