Hyundai Tucson: Engine Control System / Camshaft Position Sensor (CMPS) Schematic Diagrams

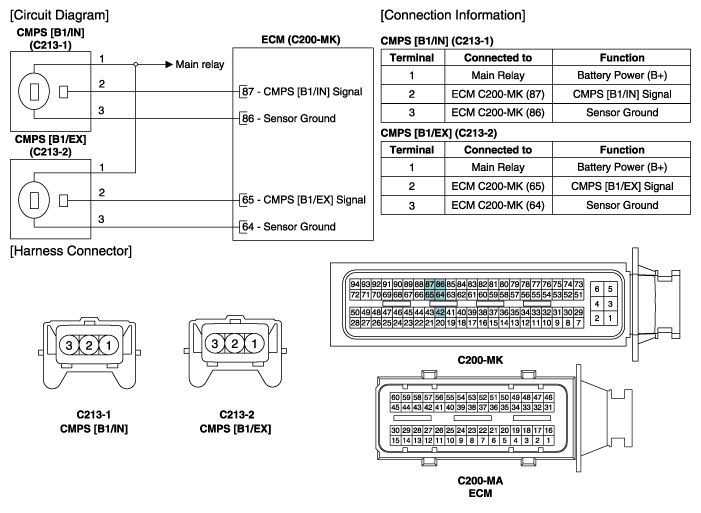

Circuit Diagram
(M/T)

(A/T)

Camshaft Position Sensor (CMPS) Troubleshooting
Signal waveform ...

Camshaft Position Sensor (CMPS) Repair procedures
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” Removal     • DON’T remove the camshaft pos ...
