Hyundai Tucson: Seat Electrical / Power Seat Control Switch Repair procedures

Inspection
1.

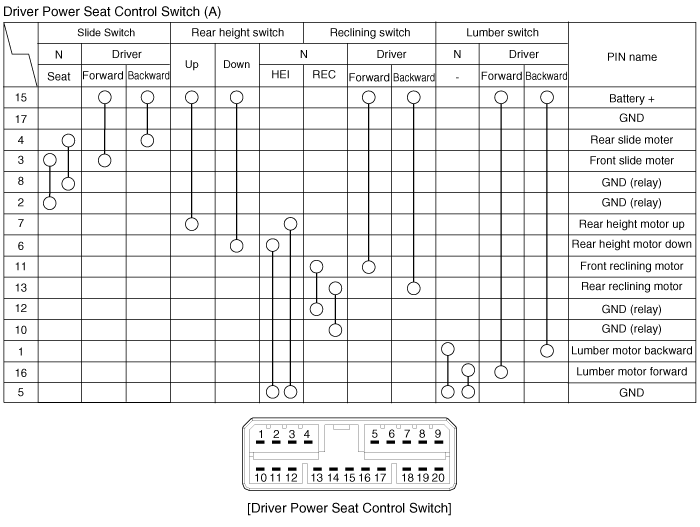

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the power seat recliner cover.
(Refer to the BD group - "Front seat")
3.
Remove the power seat control switch (A).

Installation
1.
Install the power seat control switch after connecting the connector.
2.
Install the recliner cover and front power seat.
Power Seat Motor Repair procedures
Inspection Power Seat Motor 1. Remove the front seat. (Refer to BD group - "Front seat") 2. Disconnect the connectors for each motor. 3. With the battery connected directly to the motor ...

Seat Heater Switch Repair procedures
Inspection Front Seat Heater Switch 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover (A) using the appropriate tool. 3. Remove the seat heater swit ...
