Hyundai Tucson: Immobilizer System / Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Immobilizer System / Schematic Diagrams

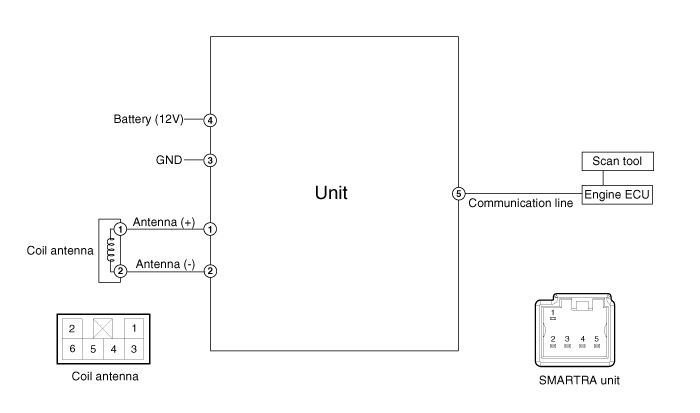

Circuit Diagram

Description and Operation

Description The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer ...
