Hyundai Tucson: Body Dimensions / Side Body Body Repair

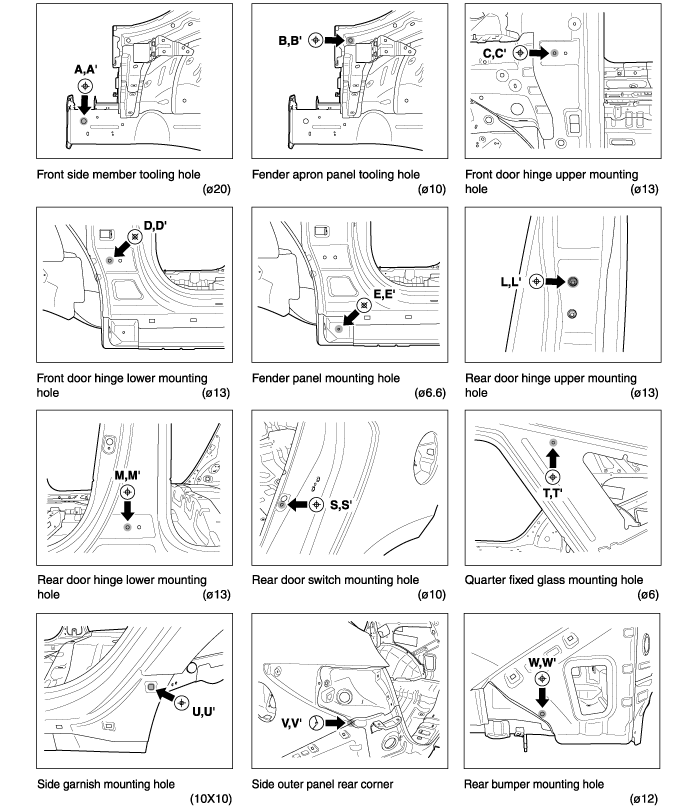

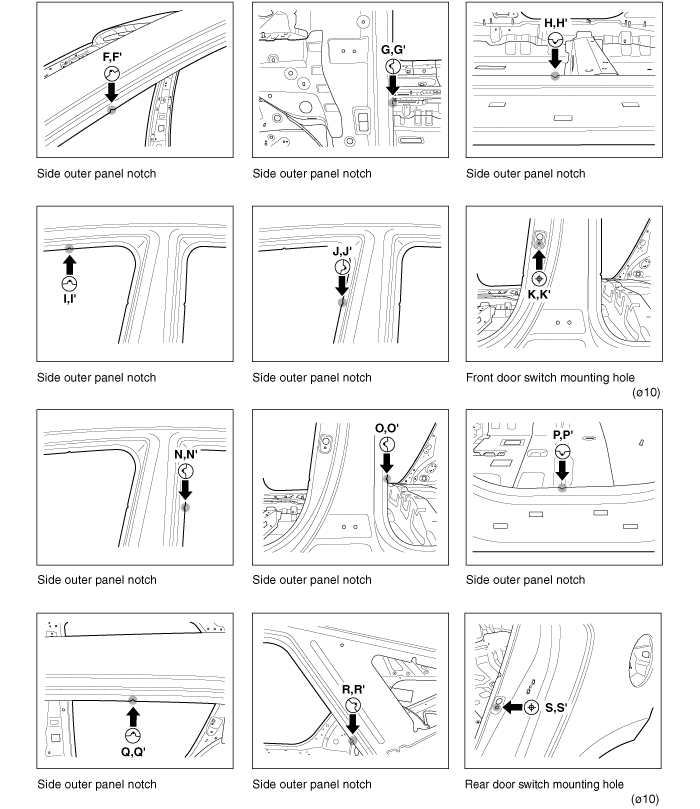

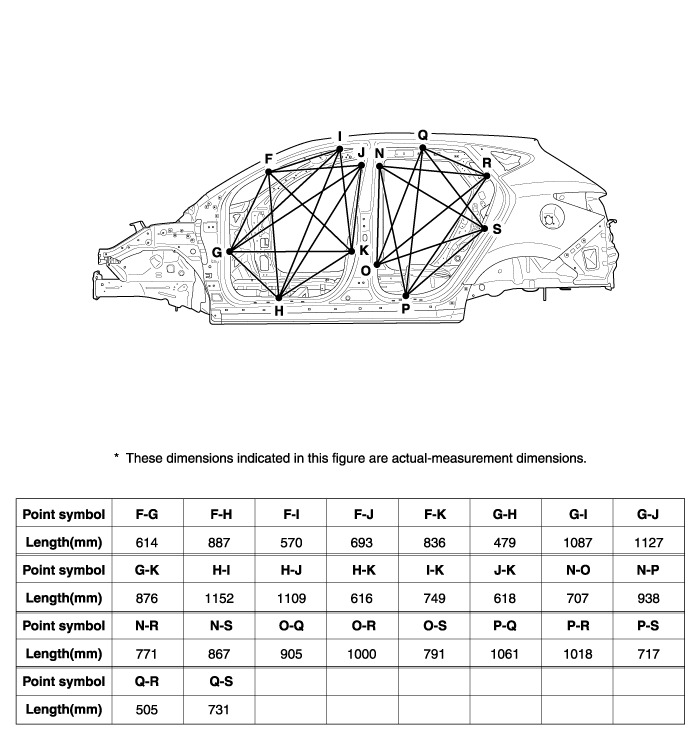

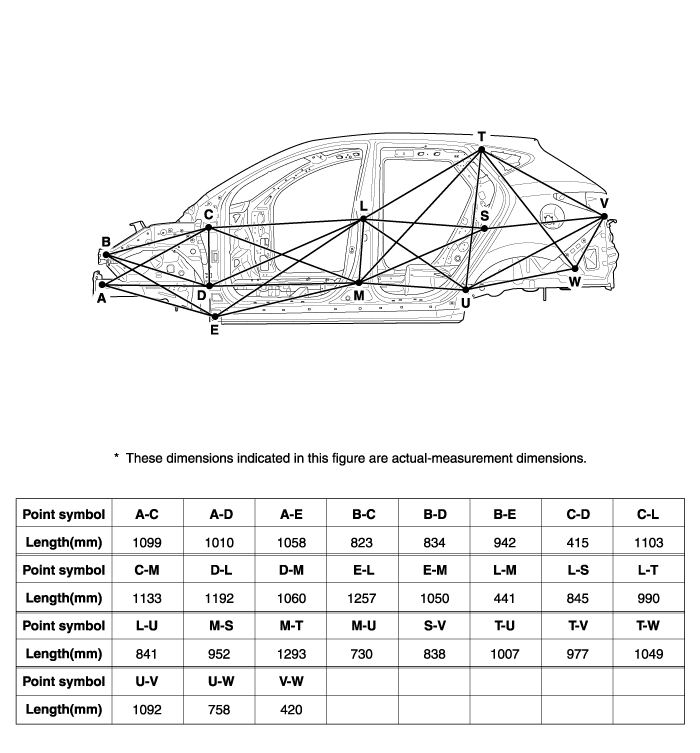

Side body A

Side body B

Front Body Body Repair
Front body A Front body B Front body C ...

Interior Body Repair
Interior A Interior B Interior C Interior D ...
