Hyundai Tucson: Body Dimensions / Interior Body Repair

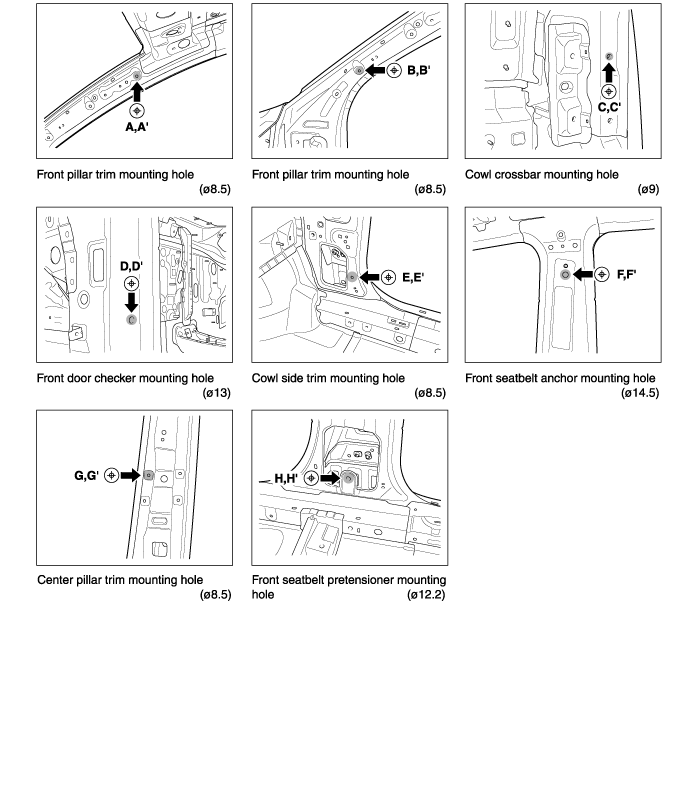

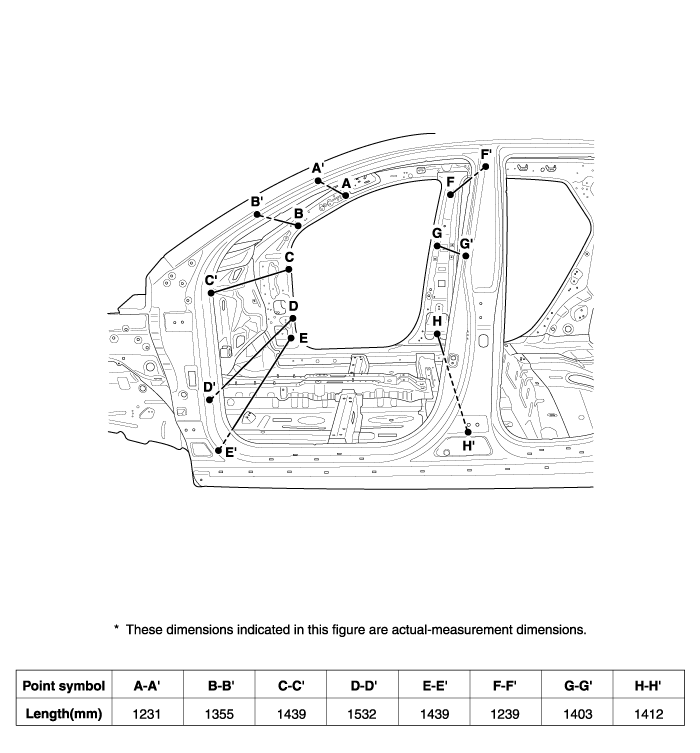

Interior A

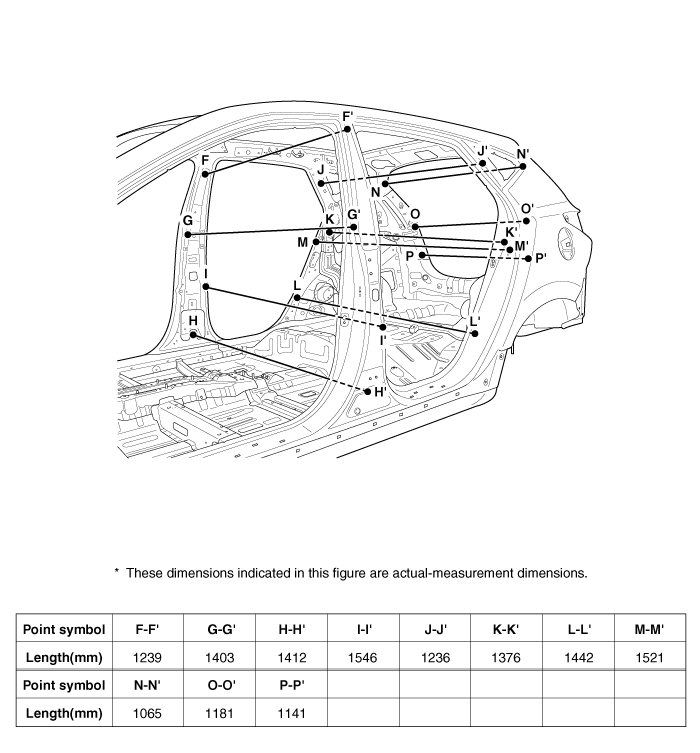

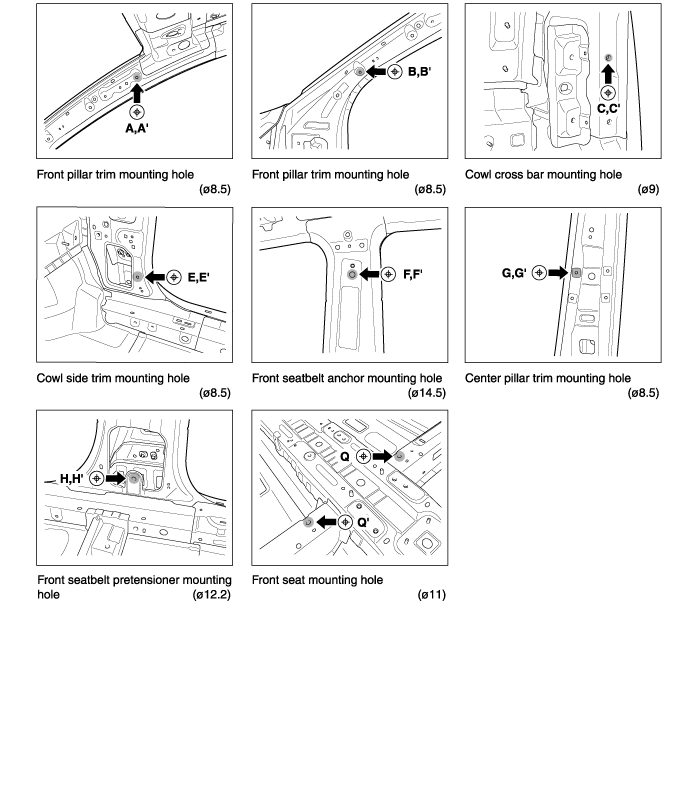

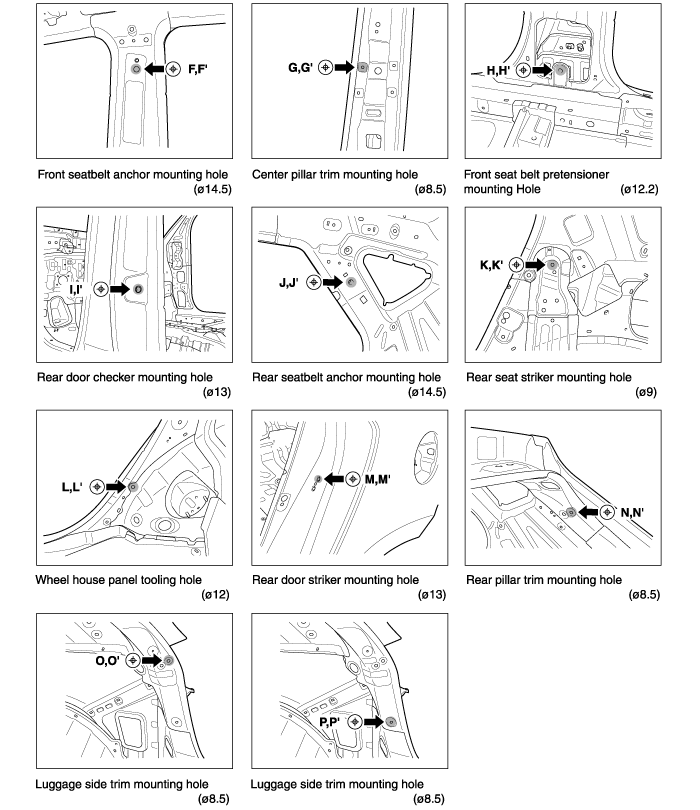

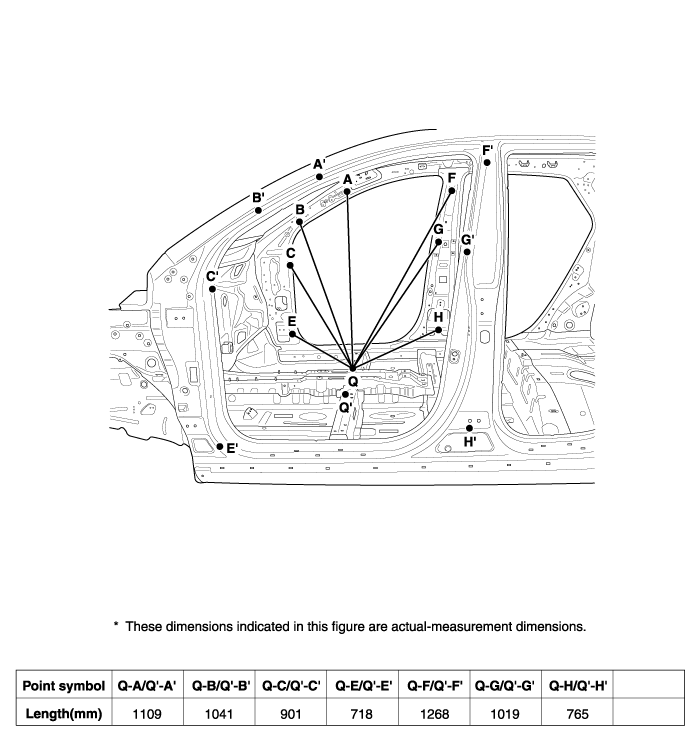

Interior B

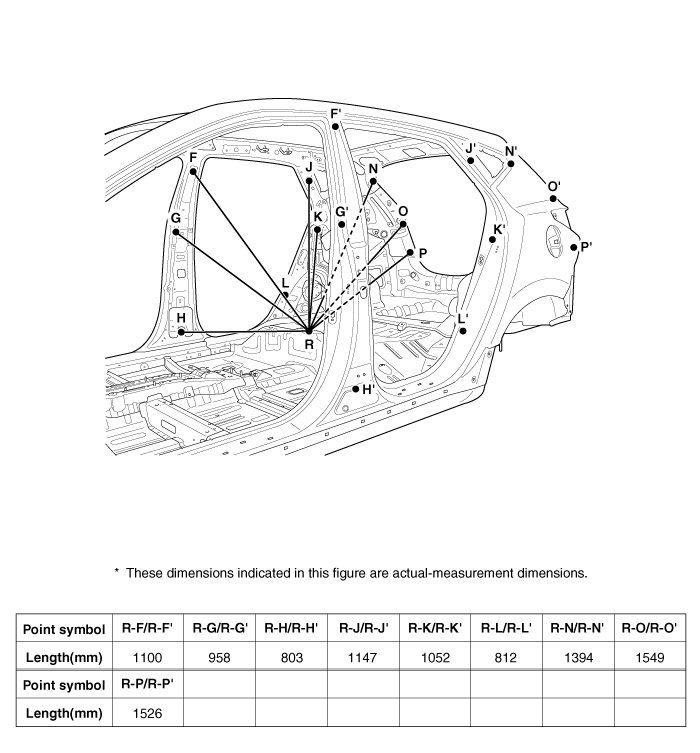

Interior C

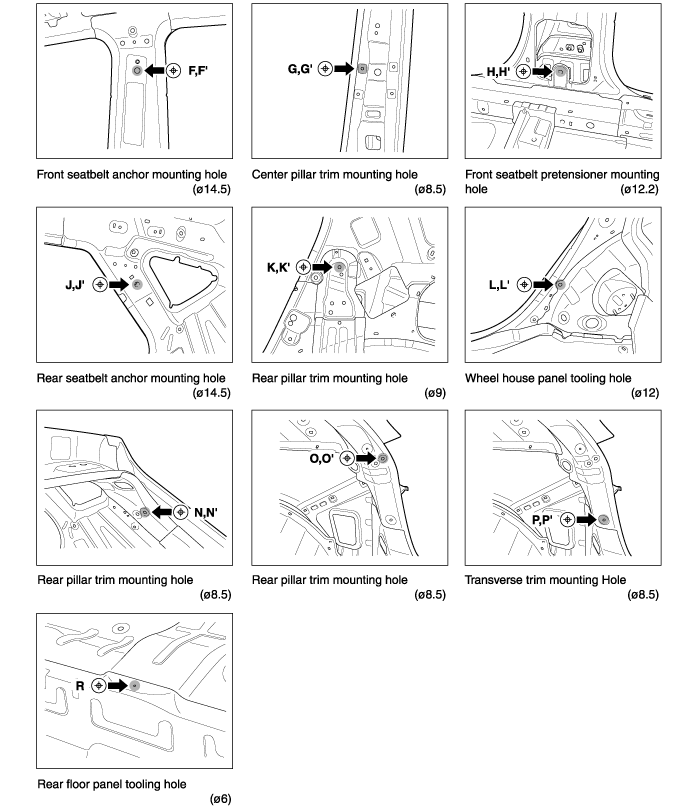

Interior D

Side Body Body Repair
Side body A Side body B ...

Rear Body Body Repair
...
