Hyundai Tucson: Timing System / Timing Chain Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and Components Location

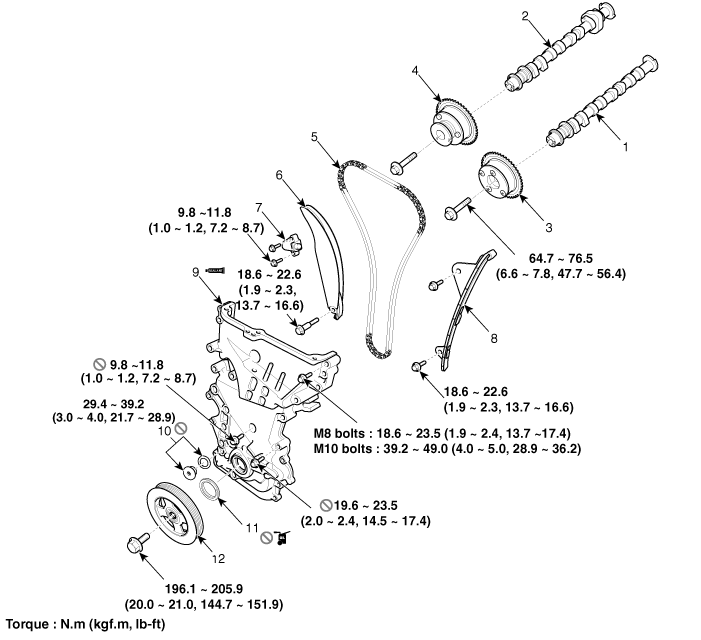

Components

1. Intake camshaft
2. Exhaust camshaft
3. Intake CVVT assembly
4. Exhaust CVVT assembly

5. Timing chain
6. Timing chain tensioner arm
7. Timing chain tensioner
8. Timing chain guide
9. Timing chain cover
10. Service plug bolt & gasket
11. Front oil seal
12. Crankshaft damper pulley
