Hyundai Tucson: 4WD Control System / 4WD ECU Flow Diagram

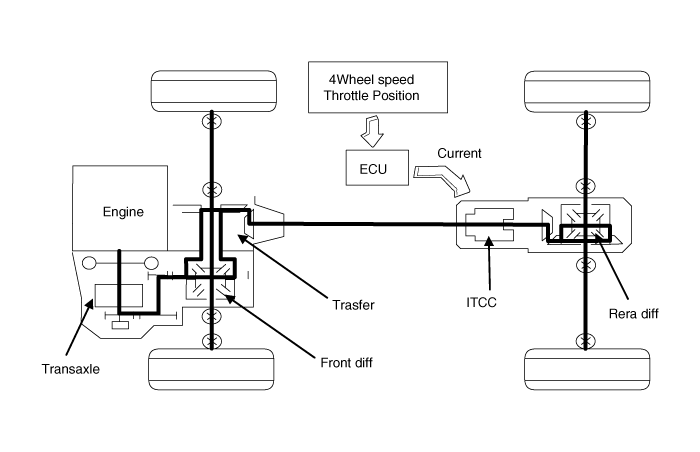

Power Flow Diagram

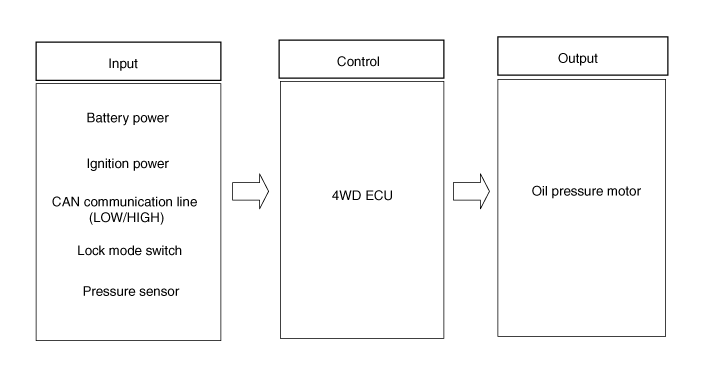

4WD ECU Input&Output Diagram

4WD ECU Description and Operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over the ...

4WD ECU Schematic Diagrams
Circuit Diagram 4WD ECU Connector PinFunction1CAN communication line (Low)2CAN communication line (High)3-4Pressure sensor signal(+)5-6Lock mode switch7Oil pressure motor B8Oil pressure motor ...
