| Circuit Diagram |
| 4WD ECU Connector |

| Pin | Function |
| 1 | CAN communication line (Low) |
| 2 | CAN communication line (High) |
| 3 | - |
| 4 | Pressure sensor signal(+) |
| 5 | - |
| 6 | Lock mode switch |
| 7 | Oil pressure motor B |
| 8 | Oil pressure motor A |
| 9 | - |
| 10 | - |
| 11 | Pressure sensor(Input) |
| 12 | Input sensor signal(-) |
| 13 | Battery power |
| 14 | Ground |
| 15 | IG power |
| 16 | - |
| 17 | - |
| 18 | - |

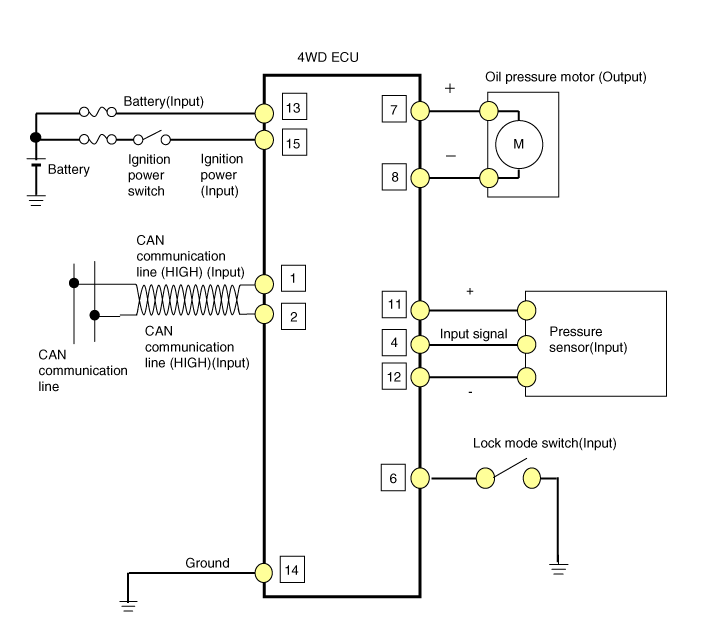

| 4WD ECU Circuit Diagram |

4WD ECU Flow Diagram
