Hyundai Tucson: Smart Parking Assist System (SPAS) / Components and Components Location
Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Components and Components Location

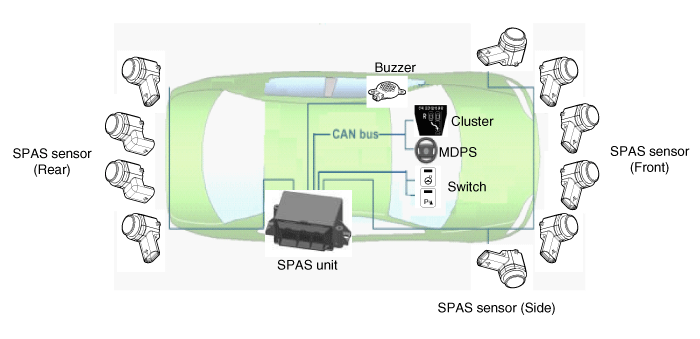

| Component Location |
| Item | Description | |
| SPAS | SPAS unit (ECU) | • Calculate the parking trace of wheels |
| • Calculate and ask the demand angle to MDPS | ||
| • Warning and detection logic of the front/rear object | ||
| Front/Rear sensor | • Detect the front/rear object | |
| Side sensor | • Check the parking area | |
| Buzzer | • Make a sound for warning : Front, rear and disable sound | |
| Cluster | • Output the SPAS HMI(Human Machine Interface) : The progress of parking and object warning | |
| MDPS (Motor Driven Power Steering) | • SPAS association control logic : Operate the steering wheel
for SPAS steering angle demand (Refer to the ST group - "MDPS system") | |
| Switch | • SPAS switch and PAS ON/OFF switch. | |
Specifications
Specifications
SPAS unitPowerIGN 1Operating voltage9V ~ 16VSPAS sensor (Front/Rear)Number of sensors4EA (Front), 4EA (Rear)Operation voltage 9V ~ 16VSupply current 0.5mA ~ 5mAOperation ...
Schematic Diagrams
Block Diagram
Circuit Diagram
...
