Hyundai Tucson: Smart Parking Assist System (SPAS) / Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Schematic Diagrams

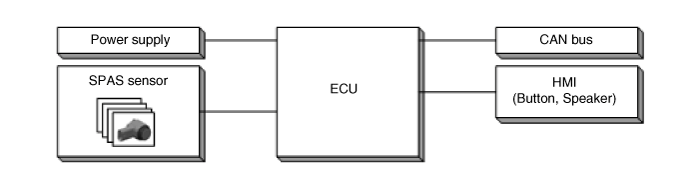

Block Diagram

Circuit Diagram

Components and Components Location

Component Location ItemDescriptionSPASSPAS unit(ECU)• Calculate the parking trace of wheels • Calculate and ask the demand angle to MDPS• Warning and detection logic of the front/rear objec ...

Description and Operation

Description Overview of the System Environment The SPAS (Smart Parking Assist System) is part of a customer system providing the PAS and the SPAS functionality to the driver. The SPAS system is a ...
