Hyundai Tucson: Audio / Audio Remote Control Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic Diagrams

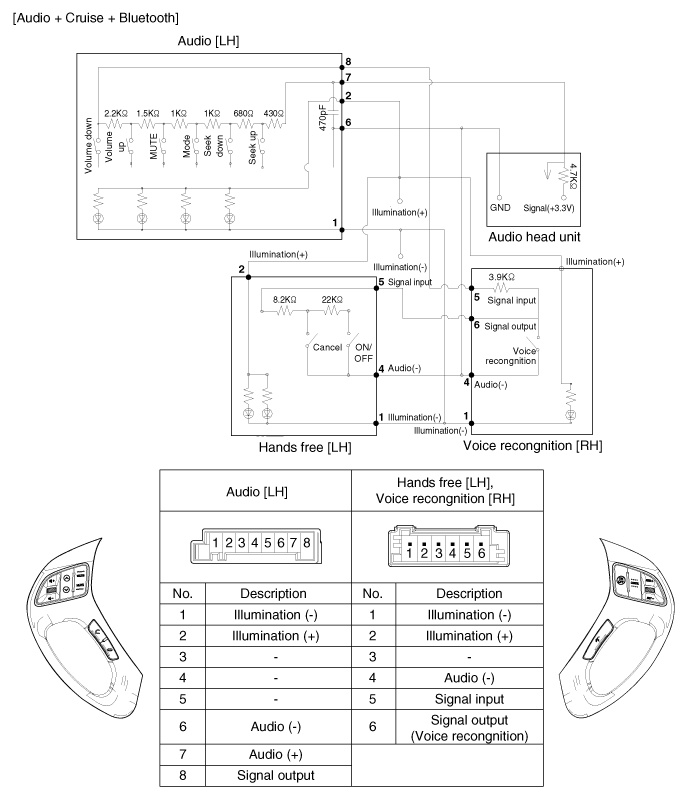

Circuit Diagram

Antenna Repair procedures
Inspection Antenna Cable 1. Remove the antenna jack from the audio unit and antenna. 2. Check for continuity between the center poles of antenna cable. 3. Check for continuity between the ...

Audio Remote Control Repair procedures
Inspection 1. Check for resistance between No.6 and No.7 terminals in each switch position. [Audio System] SwitchConnectorterminalResistance(±5%)Volume down6 - 76.81 kxVolume up6 - 74.61 kxMute ...
