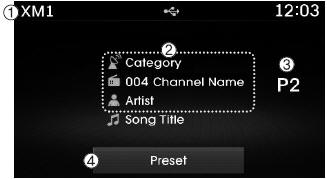

1. Mode Display Displays currently operating mode.
2. Channel Information Displays the category, channel number, channel name, artist and title information.
3. Preset Displays currently playing preset number [1] ~ [6].

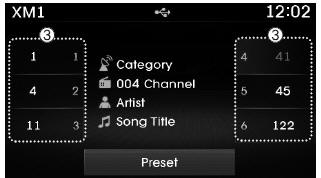

4. Preset Display Displays saved presets.
Using Seek
Press the key to play the previous/next
channel.
❈ If the “Category” icon is displayed, channels are changed within the current category.
Using Tune
Turn the TUNE knob to select the
desired channel.
SCAN
Press the key to scan all channels
with superior reception for 5 seconds each.
Once scan is complete, the previously played channel will be restored.
During Scan, pressing the key again
will cancel the scan operation and restore the previously played channel.
If the “Category” icon is displayed, channels are changed within the current category.

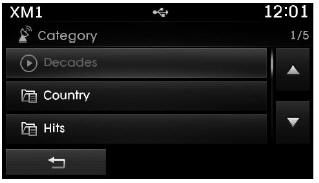

Searching Categories
Select the category by using the
key and press the
TUNE knob to select.
Channels for the selected category are played.

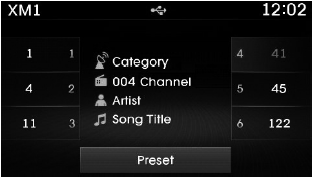

Selecting Presets/Saving Presets
Press the button to display
the broadcast information for the channel saved to each button.
Press the ~
buttons to play the desired preset.
✽ NOTICE
While listening to a channel you want to save as a preset, press and hold
one of the ~
preset buttons (over 0.8 seconds)
to save the current channel to the selected preset.
✽ NOTICE - USING THE DISCS
