Hyundai Tucson: CD Player : AC110TMKN, AC1B0TMKN, AC1B1TMAN / Bluetooth® Wireless Technology AUDIO
What is Bluetooth® Wireless Technology?
Bluetooth® Wireless Technology allows devices to be connected in a short distance, including hands-free devices, stereo headsets, wireless remote controllers, etc. For more information, visit the Bluetooth® Wireless Technology website at www.Bluetooth.com
Before using Bluetooth® Wireless Technology audio features
- • Bluetooth® Wireless Technology audio may not be supported depending on the compatibility of your Bluetooth® Wireless Technology mobile phone.
- • In order to use Bluetooth® Wireless Technology audio, you must first pair and connect the Bluetooth® Wireless Technology mobile phone.
- • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks is under license.Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® Wireless Technology.
WARNING
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death.The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
Bluetooth® Wireless Technology audio can be used only when the
[Audio Streaming] of Phone is turned
.
❈ Setting Bluetooth® Wireless Technology Audio Streaming : Press
the
key
Select [Phone] through the tune knob
or
key
Select [Audio Streaming] through the
TUNE knob
Set

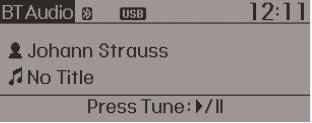

Starting Bluetooth® Wireless Technology Audio
- • Press the
key to change the mode in order of CD ➟ USB ➟ AUX ➟ My Music ➟ BT Audio. - • If BT Audio is selected, Bluetooth® Wireless Technology audio will start playing.
❈ Audio may not automatically start playing in some mobile phones.
Using the Bluetooth® Wireless Technology audio features
Play / Stop
Press the
TUNE knob to play and pause the current song.
❈ The play / pause functions may not be supported in some mobile phones.
MENU : My Music Mode
In My Music mode, press the
key to set the Repeat, Random, Information,
Delete, Delete All, and Delete Selection features.
Repeat
Press the key
Set [
RPT] through the
TUNE knob or
key ...
Phone
Before using the Bluetooth® Wireless Technology phone features
In order to use Bluetooth® Wireless Technology phone, you must first pair
and connect the Bluetooth® Wireless Technology mobile ...
