Hyundai Tucson: BCM (Body Control Module) / Body Control Module (BCM) Components and Components Location
| Components |

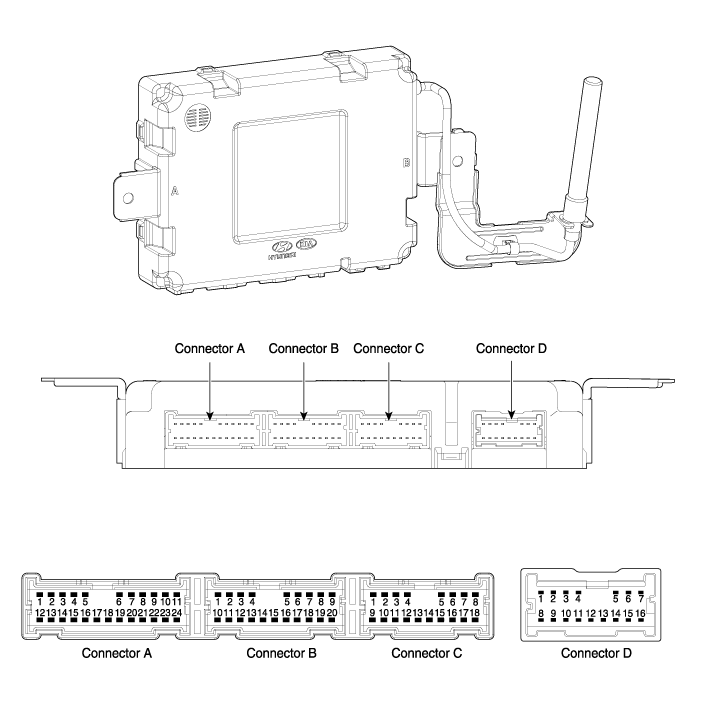

| Connector Pin Information |
| No | Connector A | Connector B | Connector C | Connector D |
| 1 | B+ | LIN (RPAS) | Safety power window Enable low | Rear seat heater relay |
| 2 | IGN 1 | Head lamp low switch | Security IND | Rear fog lamp relay |
| 3 | IGN 2 | Head lamp high switch | AV unlock signal | Front wiper relay |
| 4 | Turn signal switch (LH) | Auto folding switch | Key solenoid | Flasher relay |
| 5 | Turn signal switch (RH) | Diagnosis (K-LINE) | Room lamp | Rear turn signal (LH) |
| 6 | Inhibit R | Rear left seat heater switch | ATM solenoid | Rear turn signal (RH) |
| 7 | Crash unlock | Rear right seat heater switch | - | B+ (power1) |
| 8 | Autolight power | CAN High | - | Cornering lamp relay |
| 9 | - | CAN Low | RPAS/PAS OFF/ON IND | Rear seat heater relay (LH) |
| 10 | Brake switch | GND (Autolight) | - | Key hole illumination |
| 11 | Hazard switch | Autolight switch | Assist seat belt indicator | RPAS buzzer |
| 12 | ALT L | Front fog lamp switch | AV tail signal | Front turn signal (LH) |
| 13 | ACC | Rear fog lamp switch | RPAS/PAS option switch | Front turn signal (RH) |
| 14 | Rear washer switch | Front deicer switch | - | Cornering lamp relay (RH) |
| 15 | Rear wiper on switch | Rear deffoger switch | Door mirror folding relay | - |
| 16 | Rear wiper INT switch | RPAS OFF switch | Door mirror unfolding relay | B+ (power2) |
| 17 | Front washer switch | Sunroof open switch | Head lamp washer relay | x |
| 18 | Front INT wiper switch | MTS (RX) | GND (power) | |
| 19 | MIST switch | Autolight signal | x | |
| 20 | Wiper INT volume | Head lamp low signal | ||
| 21 | Key IN switch | x | ||
| 22 | Tail lamp switch | |||
| 23 | Key inter lock switch | |||
| 24 | Signal GND |
Body Control Module (BCM) Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-30°C ~ 80°C (-4°F ~ 158°F)Dark currentRKE type : 6.0 mASMK type : 5.0 mAGeneral type : 3. ...
Body Control Module (BCM) Schematic Diagrams
Circuit Diagram
...
