Hyundai Tucson: BCM (Body Control Module) / Body Control Module (BCM) Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / BCM (Body Control Module) / Body Control Module (BCM) Schematic Diagrams

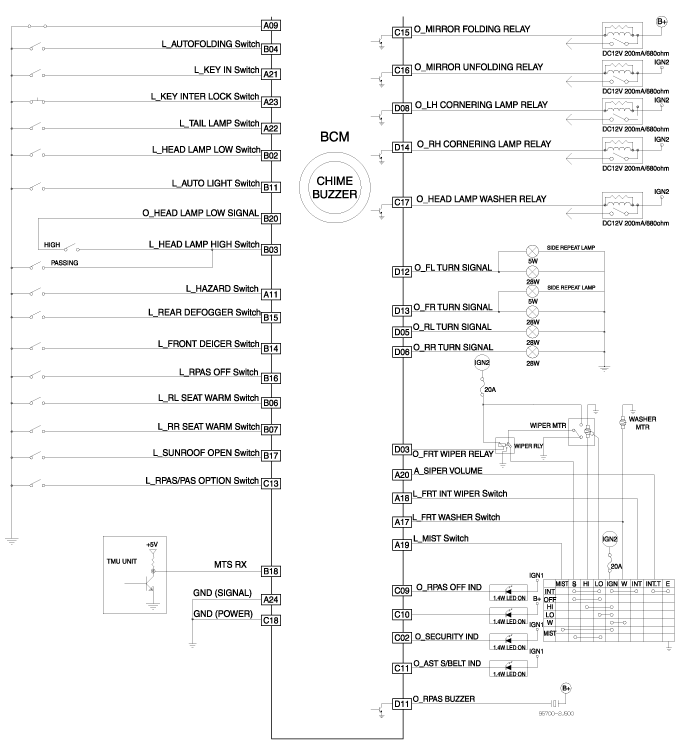

Circuit Diagram

Body Control Module (BCM) Components and Components Location

Components Connector Pin Information NoConnector AConnector BConnector CConnector D1B+LIN (RPAS)Safety power window Enable lowRear seat heater relay2IGN 1Head lamp low switchSecurity INDRear fog ...

Body Control Module (BCM) Description and Operation

Body Control Module (BCM) Funtionsscription FunctionDescriptionFRONT WASHER LINKED WIPERx With IGN2 ON, turning ON the WasherSW turns ON the Wiper and turning OFF the WasherSW keeps Wiper outpu ...
