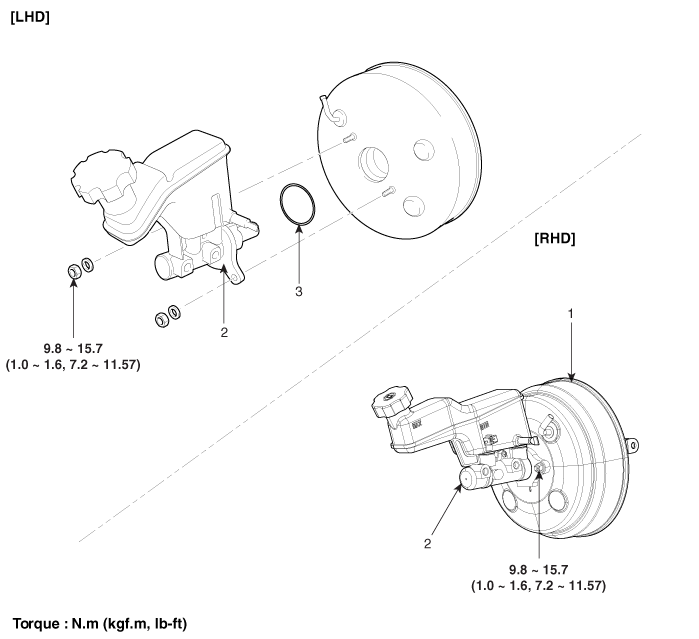

Components

1. Brake booster
2. Master cylinder assembly
3. O-ring

Repair procedures
Operation and Leakage Check Check all of the following items : ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes do not work prop ...

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...
