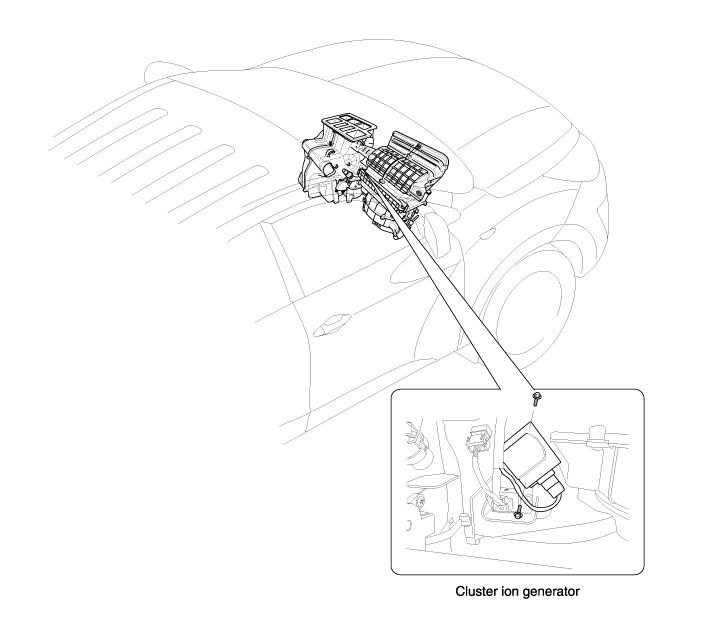

Hyundai Tucson: Air Conditioning System / Cluster Ion Generator Components and Components Location

Ambient Sensor Repair procedures

Inspection 1. Ignition "OFF" 2. Disconnect ambient temperature sensor. 3. Check the resistance of ambient temperature sensor between terminals 1 and 2 whether it is changed by changing o ...

Cluster Ion Generator Description and Operation

Description 1. The function of cluster ion generator is cleaning air by sterilizing and dissolving of air conditioner. 2. The function of cluster ion generator is controlling mold caused by s ...

Other information:

Hyundai Tucson (LM) 2010-2015 Service Manual: General Safety Information and Caution
Instructions When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves. 2. It is standard practice to wear goggles or glasses to protect your eye ...

Hyundai Tucson (LM) 2010-2015 Service Manual: Schematic Diagrams
ESC connector input/output Connector TerminalSpecificationRemarkNoDescription29IGNITION1(+)High level of wake up voltage :5.0V < V < 16.0VLow level of wake up voltage V < 2.4VMax. current : I < 50mAx25POS. BATTERY 1.(SOLENOID)Over voltage range : 17.0 ± 0.5V Operating voltage range ...
