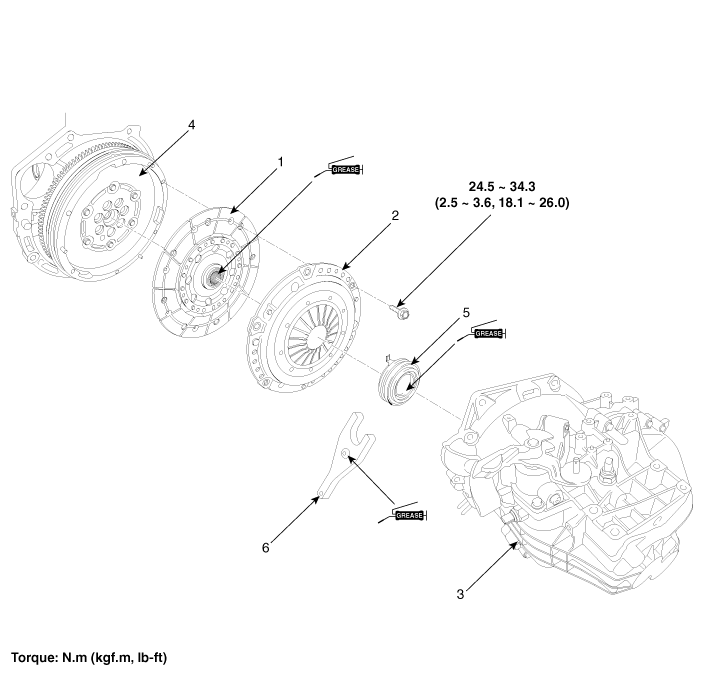

Components

1. Clutch disc
2. Clutch cover
3. Manual transaxle
4. Engine flywheel
5. Clutch release bearing
6. Clutch release fork

Clutch System
...

Clutch Cover And Disc Repair procedures
Removal 1. Remove the transaxle assembly. (Refer to "Manual transaxle system" in MT group) 2. Remove the clutch cover bolts.     • Be careful not to be bent or twist ...
