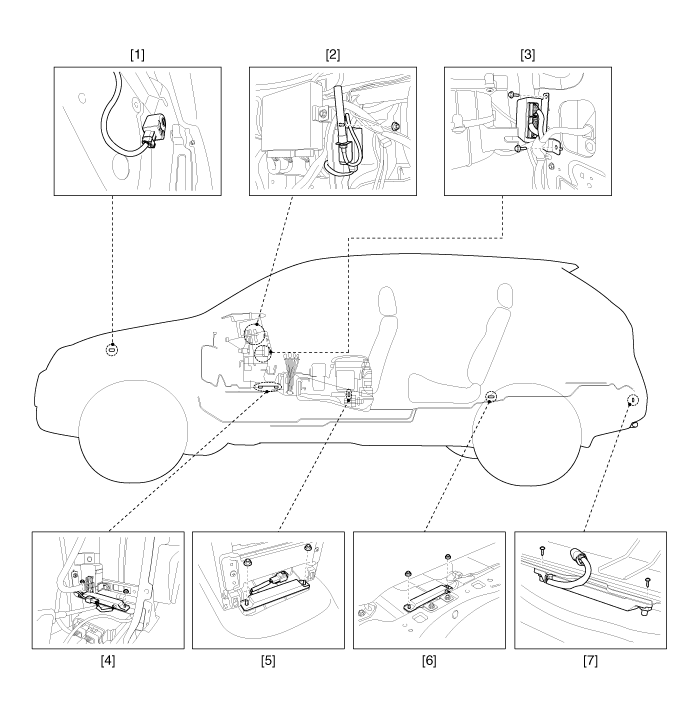

Component Location (1)

1. Buzzer
2. RF receiver
3. Smart key unit
4. Interior antenna 1

5. Interior antenna 2
6. Interior antenna 3
7. Bumper antenna

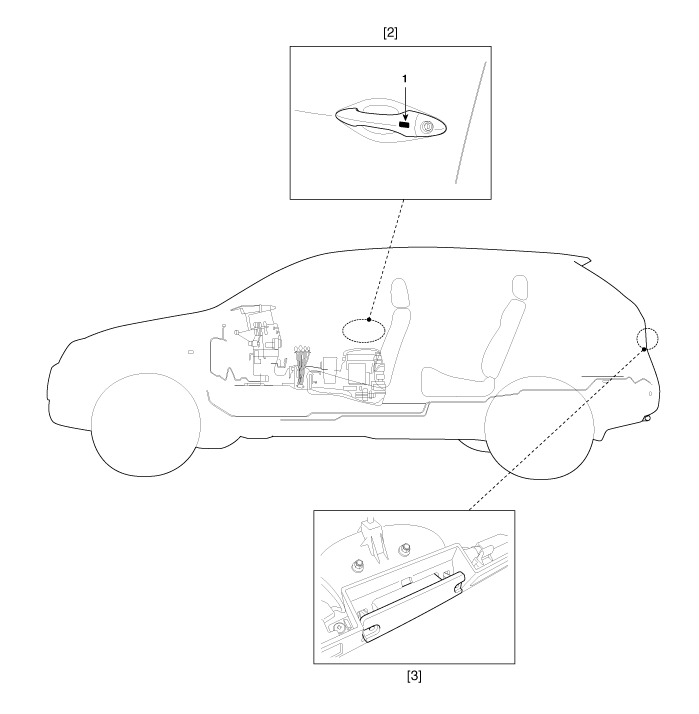

Component Location (2)

1. Door outside handle button.
2. Door outside handle

3. Liftgate open switch

Specifications

Specifications Smart Key Unit ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 167°F (-30°C ~ 75°C)LoadMax. 5mA (When welcome light function off) ...

Description and Operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is n ...
