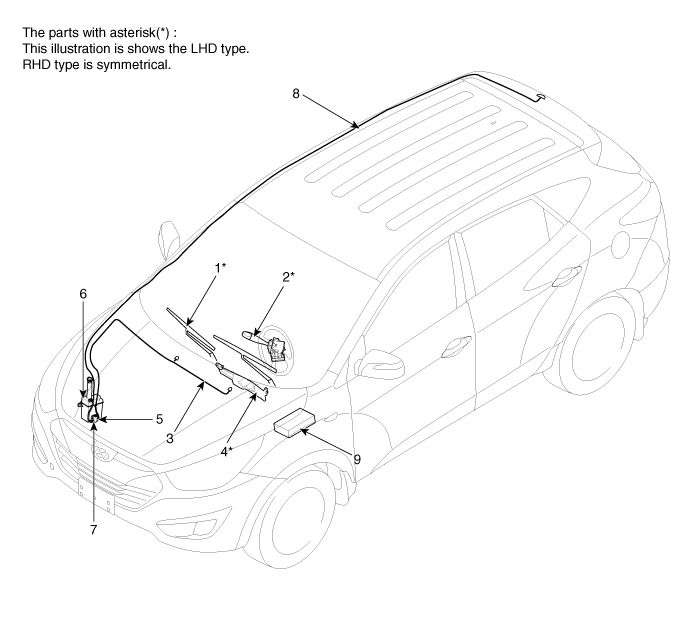

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor (Front)

6. Washer reservoir
7. Washer motor (Rear)
8. Rear washer hose & nozzle (Nozzle is built-in HMSL)
9. Front wiper relay (Engine room relay box)
