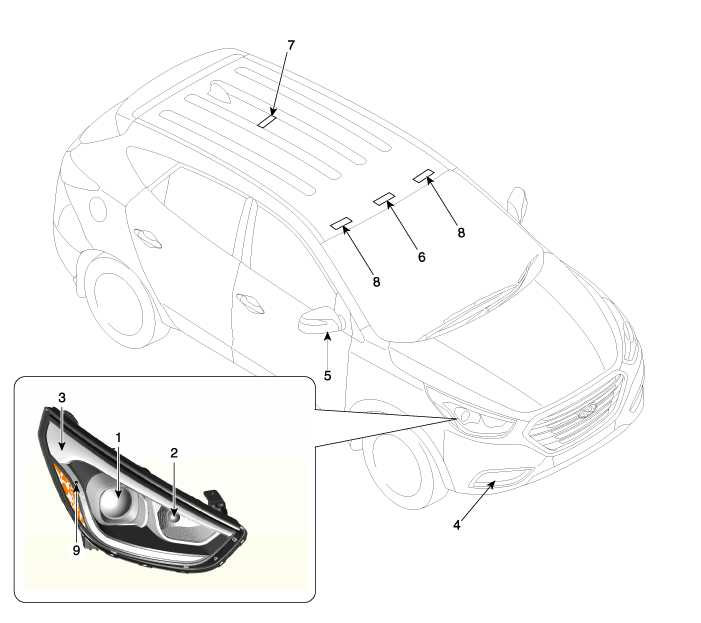

Component Location (1)

1. Head lamp (High/Low)
2. Front turn signal lamp
3. Position lamp
4. Front fog lamp
5. Door mirror turn signal lamp

6. Overhead console lamp
7. Room lamp
8. Vanity lamp
9. Side marker

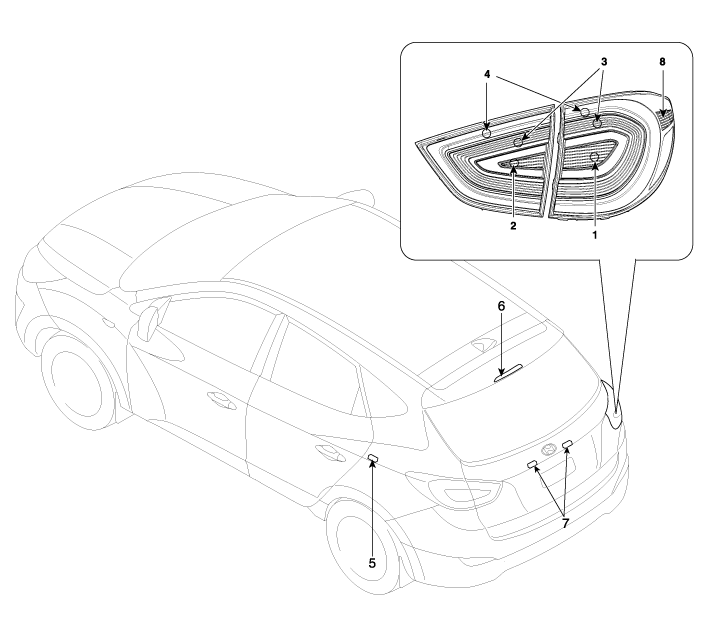

Component Location (2)

1. Turn signal lamp
2. Back up lamp
3. Tail/stop lamp
4. Stop lamp
5. Luggage lamp

6. High mounted stop lamp
7. License plate lamp
8. Side marker

Specifications

Specifications ItemsBulb Wattage (W)FrontHead lamp (Low/High)55 - HIR2Turn signal lampPY21WPosition lampLEDHead lamp (Low/High) HID35 - D3SDRL (Option)LEDExteriorFront fog lamp27Rear fog lamp21Tu ...

Head Lamps Components and Components Location

Component (1) 1. Head lamp assembly lens and housing2. Head lamp high/low bulb3. Dust cover4. Trun signal lamp socket5. Turn signal lamp bulb6. Side marker lamp bulb ...
