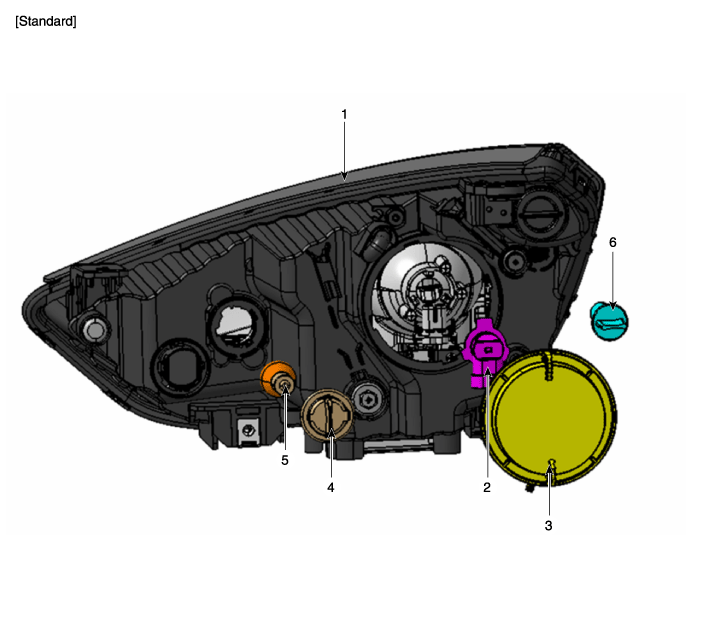

Component (1)

1. Head lamp assembly lens and housing
2. Head lamp high/low bulb
3. Dust cover
4. Trun signal lamp socket
5. Turn signal lamp bulb
6. Side marker lamp bulb

Components and Components Location
Component Location (1) 1. Head lamp (High/Low)2. Front turn signal lamp3. Position lamp4. Front fog lamp5. Door mirror turn signal lamp6. Overhead console lamp7. Room lamp8. Vanity lamp9. Side ma ...

Head Lamps Repair procedures
Removal     Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.     The headlamp b ...
