Component Location

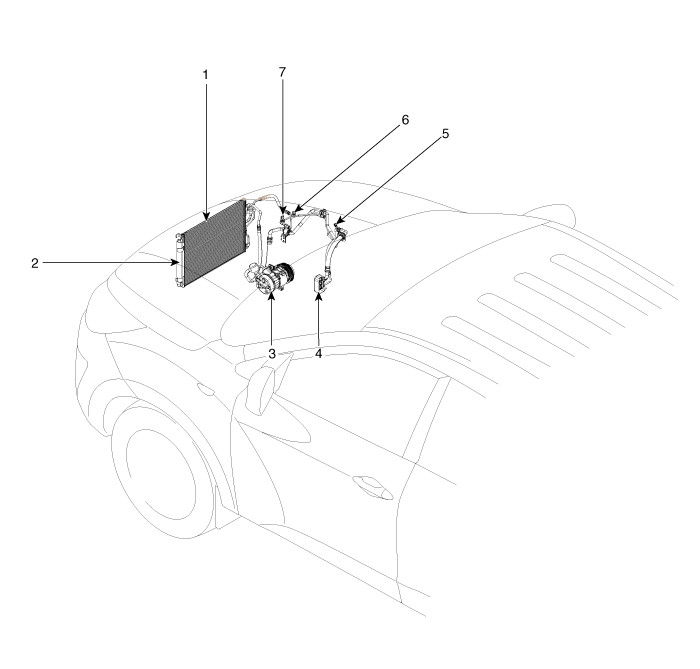

Engine Room

1. Condenser
2. Receiver-drier
3. Compressor
4. Expansion Valve

5. Service port (High)
6. Service port (Low)
7. A/C Pressure Transducer

Interior

Repair procedures

Refrigerant System Service Basics Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the ...

Compressor Oil Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (P ...
