Hyundai Tucson: Fuel Delivery System / Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and Components Location

Components Location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
7. Fuel tank band

8. Fuel tank pressure sensor (FTPS)
9. Canister close valve (CCV)
10. Fuel level sender (FLS)
11. Fuel filler hose
12. Ventilation tube
13. Vapor tube
14. Fuel pump plate cover

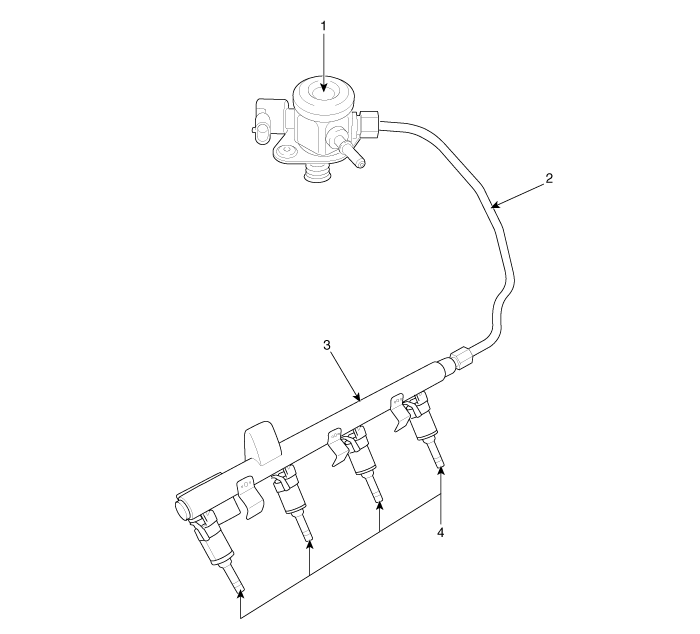

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe

3. Delivery Pipe
4. Injector

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.
