Hyundai Tucson: Rear Suspension System / Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Suspension System / Rear Suspension System / Components and Components Location

Components

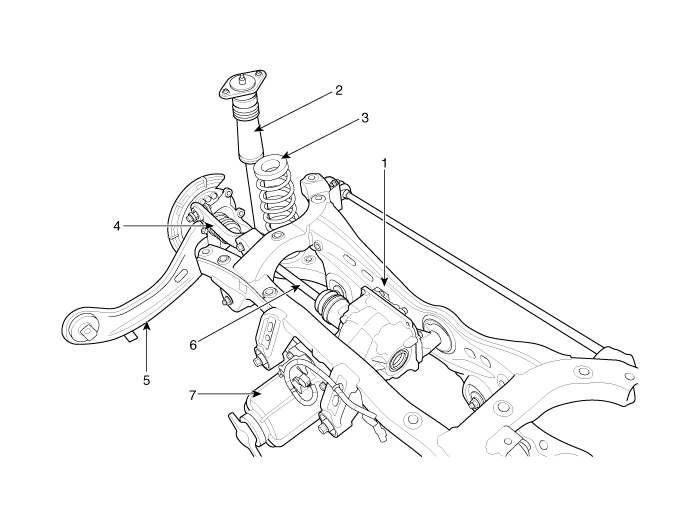

[4WD]

1. Sub frame
2. Shock absorber
3. Coil spring
4. Upper arm

5. Trailing arm
6. Drive shaft rear axle
7. Differential carrier

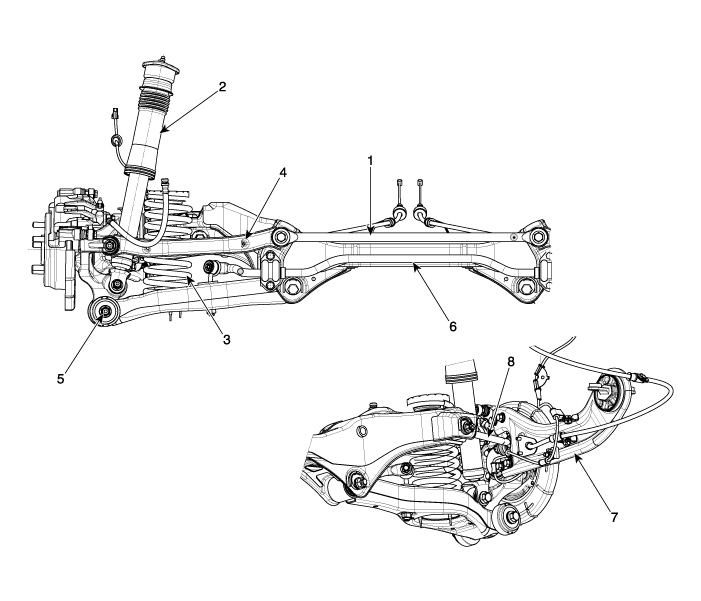

[2WD]

1. Sub frame
2. Shock absorber
3. Coil spring
4. Upper arm

5. Rear lower arm
6. Rear stabilizer bar
7. Trailing arm
8. Aissit arm
