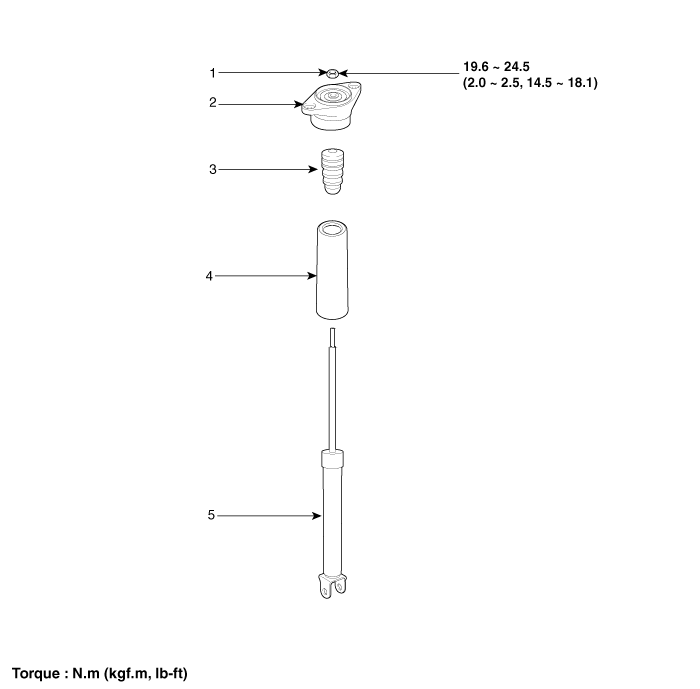

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber

Components and Components Location
Components [4WD] 1. Sub frame2. Shock absorber3. Coil spring4. Upper arm5. Trailing arm6. Drive shaft rear axle7. Differential carrier [2WD] 1. Sub frame2. Shock absorber3. Coil sprin ...

Rear Shock Absorber Repair procedures
Replacement 1. Remove the rear wheel & tire.the rear wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)     Be careful not to da ...
