Hyundai Tucson: Coupling Assembly / Pressure Sensor Repair procedures

Hyundai Tucson (LM) 2010-2015 Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor Repair procedures

Inspection

If you have trouble code related to the pressure sensor check pressure sensor according to the inspection process.

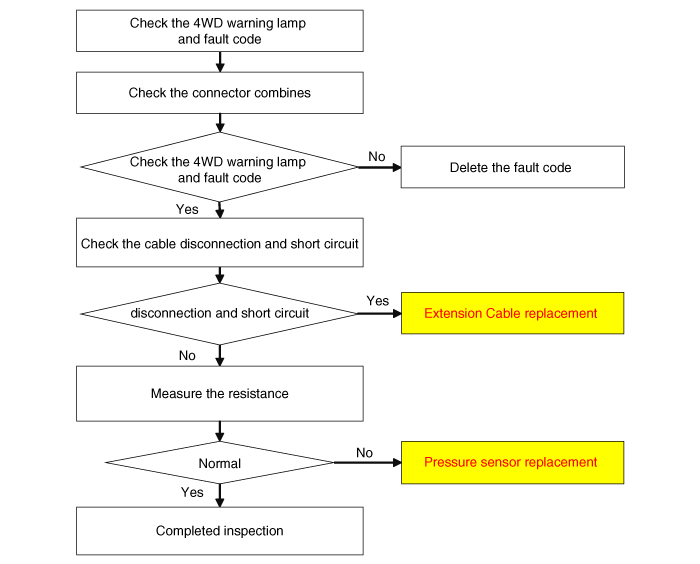

Pressure Sensor Inspection Procedure

Measure the resistance of pressure sensor

1.	Turn ignition switch OFF.

2.	Disconnect the pressure sensor connector.

3.	Measure resistance between sensor terminal and terminal.

Check the measured resistance. (Refer to table)

Terminal	Resistance
PIN 2 – PIN 3	2.755 ~ 4.133 kx
PIN 1 – PIN 3	1.892 ~ 2.838 kx
PIN 1 – PIN 2	1.714 ~ 2.838 kx

Removal

1.	Remove the coupling assembly. (Refer to Coupling Assembly - " Removal ")

2.	Remove the extension Cable (A).

Remove the pressure sensor (A) with 24mm socket.

•	Keep going horizontal state to prevent leaks during remove the pressure sensor.

Tightening torque:

7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

Installation

•	Check the cleanliness of the pressure sensor before installation.

•	Check the pressure sensor O-ring (A).

1.	Install in the reverse order of removal.

Pressure Sensor Schematic Diagrams

Circuit Diagram ...
