Hyundai Tucson: General Information / Components and Components Location
Hyundai Tucson (LM) 2010-2015 Service Manual / Restraint / General Information / Components and Components Location
| Components |

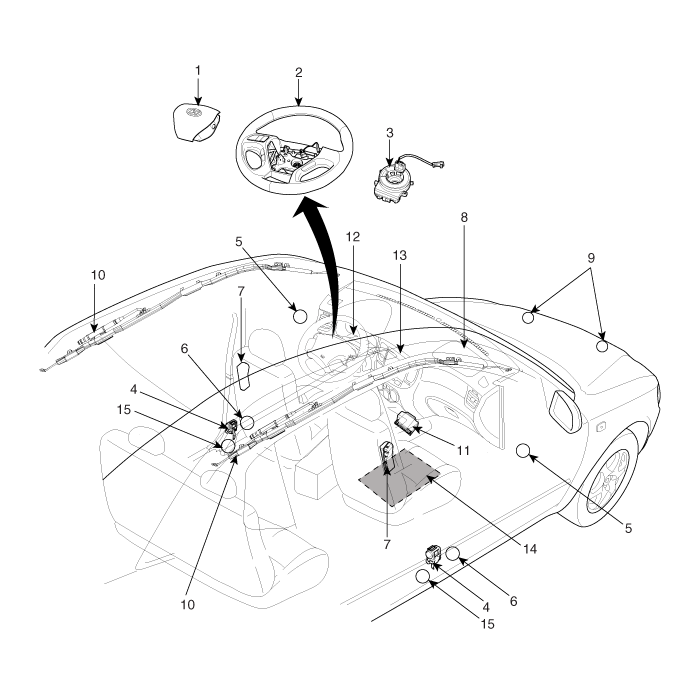

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side Airbag (SAB) 8. Passenger Airbag (PAB) | 9. Front Impact Sensor (FIS) 10. Curtain Airbag (CAB) 11. Supplemental Restraint System Control Module (SRSCM) 12. Airbag Warning Lamp 13. Telltale Lamp 14. Passenger Occupant Detecting System (PODS) 15. Anchor Pretensioner (APT) |
| Components Location |

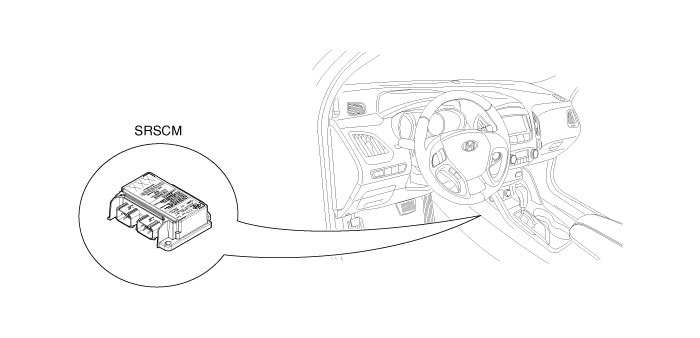

| Supplemental Restraint System Control Module (SRSCM) |

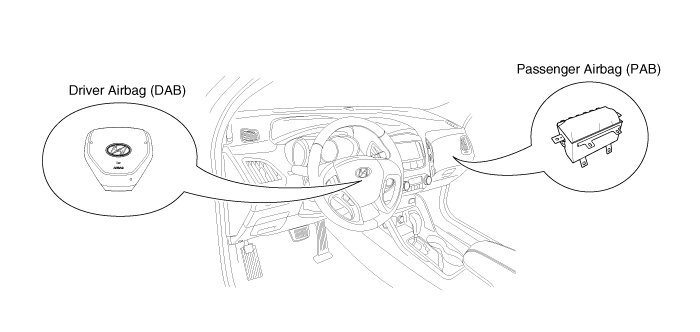

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

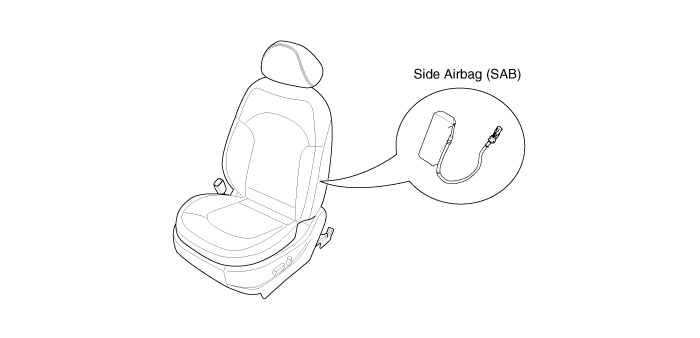

| Side Airbag (SAB) |

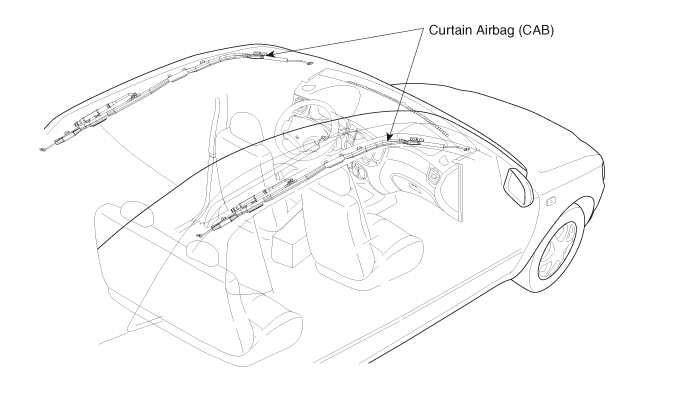

| Curtain Airbag (CAB) |

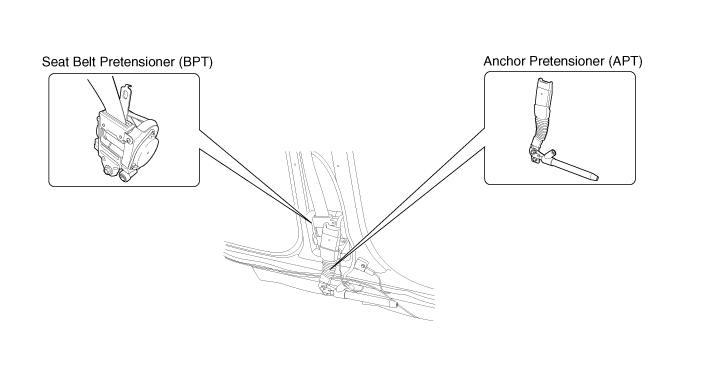

| Seat Belt Pretensioner (BPT) / Anchor Pretensioner (APT) |

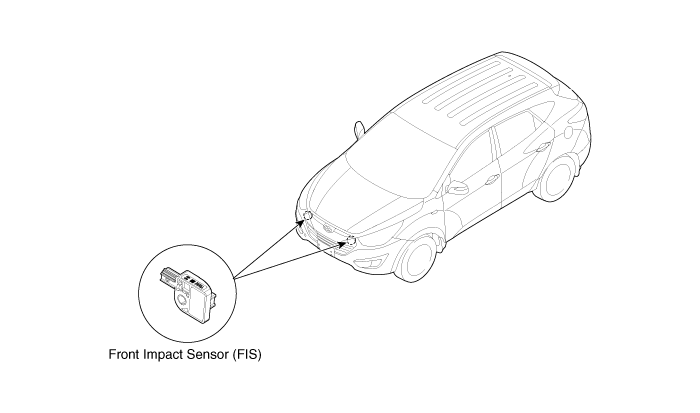

| Front Impact Sensor (FIS) |

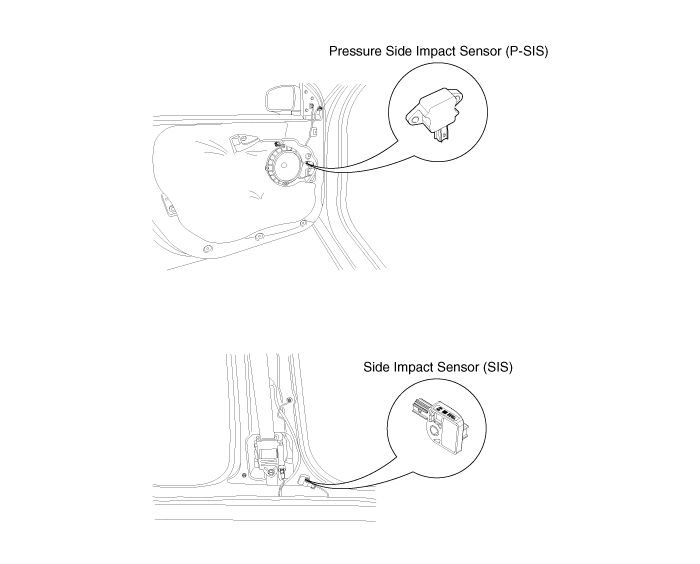

| Side Impact Sensor (SIS) |
Repair procedures
Component Replacement After Deployment
Before doing any SRS repairs, use the GDS Pro to check for
DTCs. Refer to the Diagnostic Trouble Code list for repairing of the
rela ...
SRSCM
...
