Hyundai Tucson: Manual Transaxle Control System / Control Cable Components and Components Location

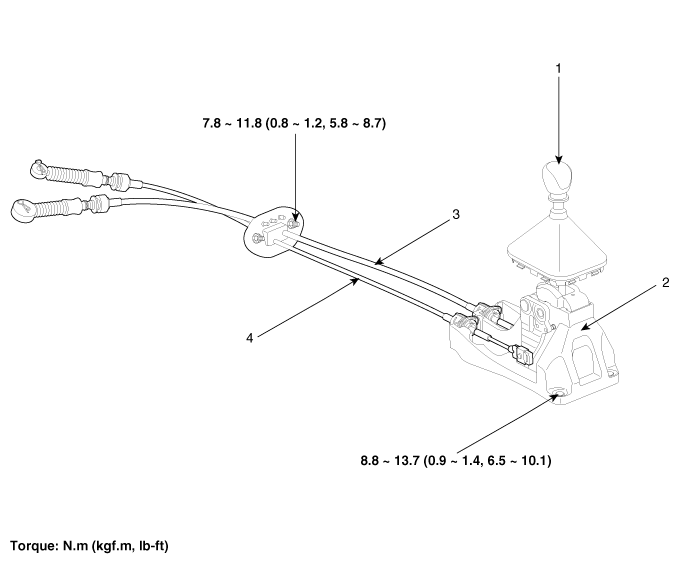

Components

1. Shift lever knob
2. Shift lever assembly
3. Select cable assembly
4. Shift cable assembly

Shift Lever Repair procedures
Removal 1. Remove the center console. (Refer to "Console" in BD group) 2. Remove the snap pin (A) and the clip (B). 3. Remove the clip (A) and then remove the shift cable assembly. 4. ...

Control Cable Repair procedures
Inspection 1. Check the select cable for proper operation and for damage. 2. Check the shift cable for proper operation and for damage. 3. Check the boots for damage. 4. Check the bo ...
