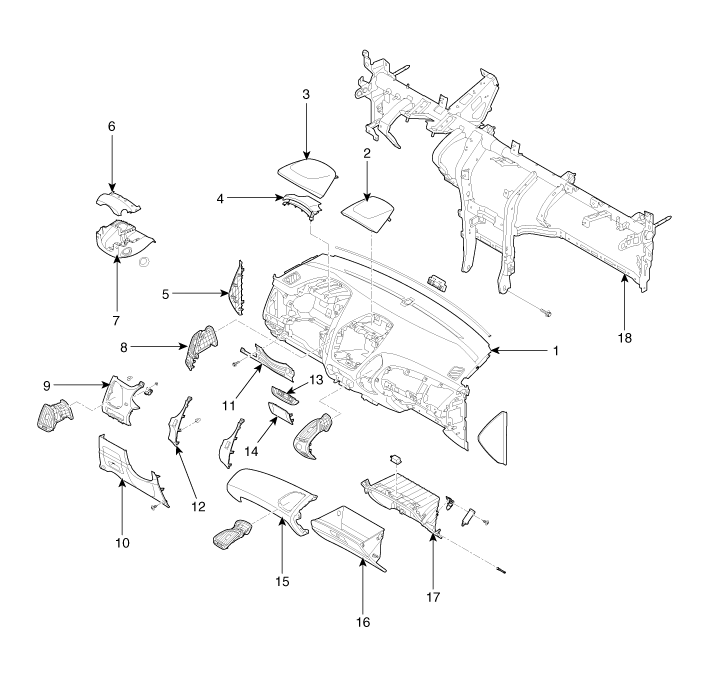

Components

1. Main crash pad assembly
2. Center fascia upper panel
3. Cluster fascia panel
4. Cluster fascia lower panel
5. Crash pad side cover
6. Shrouds upper panel
7. Shrouds lower panel
8. Air vent
9. Crash pad driver's panel (LH)
10. Crash pad lower panel
11. Reirforce panel
12. Center fascia driver's panel (RH)
13. Center fascia lower panel
14. Crash pad center panel
15. Crash pad passenger's panel
16. Glove box
17. Glove box housing
18. Cowl cross bar

Console Repair procedures
Replacement [M/T]     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver, wrap it with protective tape, an ...

Crash Pad Repair procedures
Replacement Cluster Replacement     • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to preve ...
