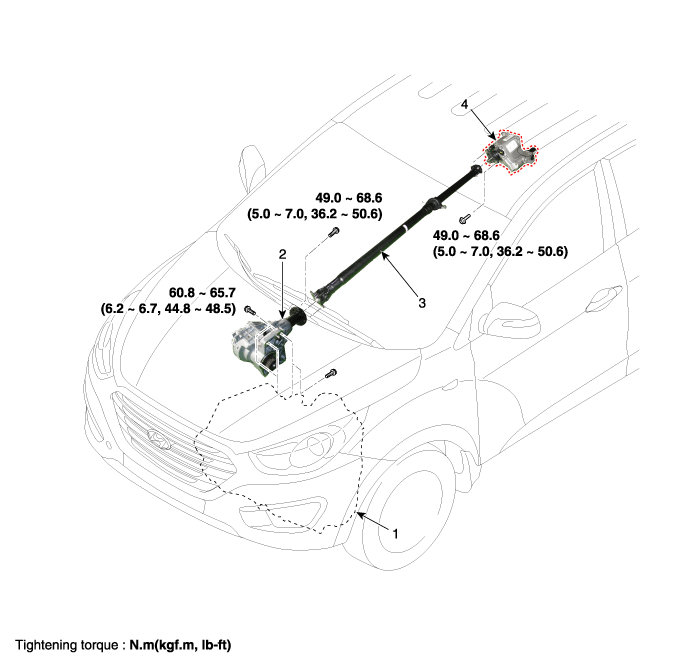

Component Location

1. Transaxle Assembly
2. Transfer assembly
3. Propeller shaft
4. Coupling assembly

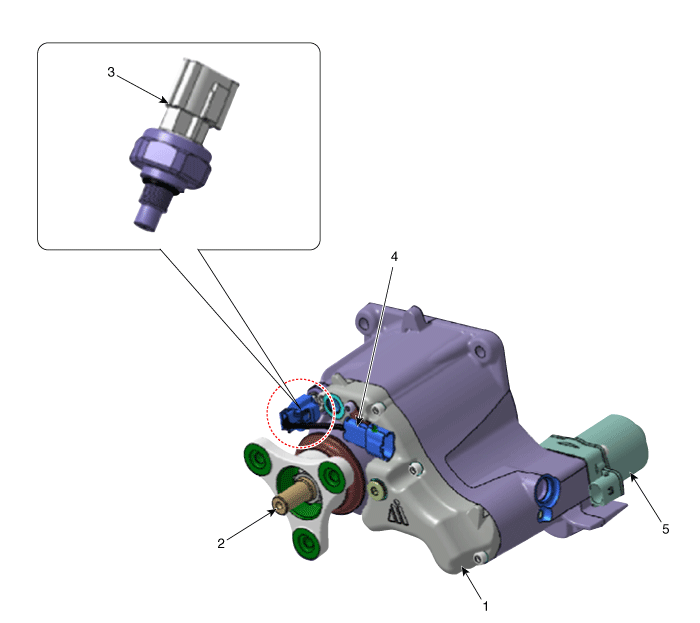

Components

1. Coupling assembly
2. Input shaft
3. Pressure sensor
4. Extension wiring
5. Oil hydraulic Motor(Actuator)

Coupling Assembly
...

Direct Electro Hydraulic Actuator Coupling Description and Operation
Description 4WD ECU processes signals from various sensors and determines the current road and driving conditions. The ECU then utilizes this information to implement precision control over th ...
