Hyundai Tucson: Interior rearview mirrors / Electric chromic mirror (ECM) (if equipped)
The electric rearview mirror automatically controls the glare from the headlights of the car behind you in nighttime or low light driving conditions.
When the engine is running, the glare is automatically controlled by the sensor mounted in the rearview mirror. The sensor detects the light level around the vehicle, and automatically adjusts to control the headlight glare from vehicles behind you.
Whenever the shift lever is placed in R (Reverse), the mirror will automatically go to the brightest setting to improve the driver’s view behind the vehicle.
To operate the electric rearview mirror:

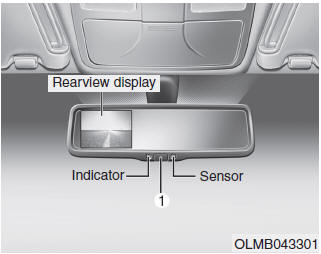

- Press the ON/OFF button (1) to turn the automatic dimming function on. The mirror indicator light will illuminate. Press the ON/OFF button to turn the automatic dimming function off. The mirror indicator light will turn off.
- The mirror defaults to the ON position whenever the ignition switch is turned on.
CAUTION
When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing and damage the rearview mirror.
Day/Night rearview mirror (if equipped)
Make this adjustment before you start driving and while the day/night lever is
in the day position.
Pull the day/night lever toward you to reduce headlight glare from vehicles behind
you during ...
Blue Link® center (if equipped)
For details, refer to the Blue Link® Owner’s Guide, Navigation Manual or Audio
Manual. The Audio Manual is in the chapter 4. ...
