Replacement

•	When removing and installing the hood, an assistant is necessary.

•	Be careful not to damage the hood and body.

•	When removing the clips, use a clip remover.

1.	Remove the front bumper. (Refer to Bumper - “Front Bunper” )

2.	Loosen the mud guard mounting screws.

3.	After loosening the mounting screws and clips, then remove the side sill garnish (A).

4.	After loosening the mounting screws, then remove the front bumper side mounting bracket (A).

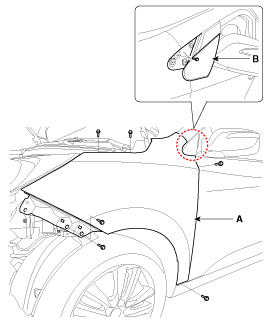

5.	Using a screwdriver, remove the fender side cover (B).

6.	After loosening the mounting bolts, then remove the fender (A).

7.	Install in the reverse order of removal.
