Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Hydraulic System / Fluid Components and Components Location

Components Location

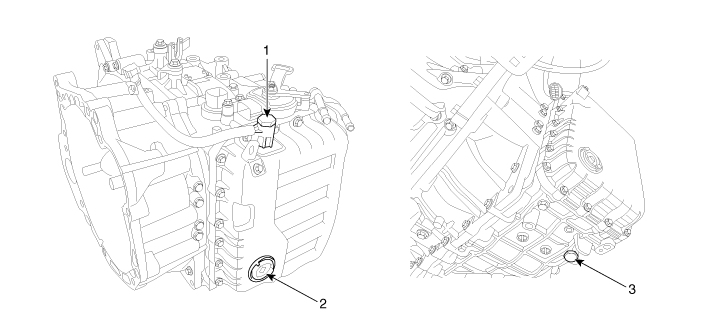

1. Injection hole (eyebolt)
2. Oil level plug
3. Oil drain plug

Oil Pump Components and Components Location

Components 1. Reaction shaft support assembly2. Oil pump housing3. Driven gear4. Drive gear5. Oil seal6. Bushing-housing7. Reaction shaft8. Bushing-reaction shaft9. Sleeve10. Flange bolt Oil P ...

Fluid Repair procedures

Service Adjustment Procedure Oil level Check A check of ATF level is not normally required during scheduled services. If an oil leak is found, perform the oil level chec ...
