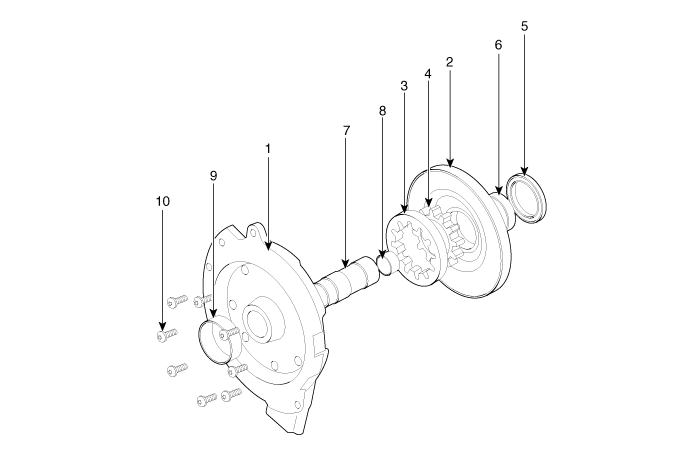

Components

1. Reaction shaft support assembly
2. Oil pump housing
3. Driven gear
4. Drive gear
5. Oil seal

6. Bushing-housing
7. Reaction shaft
8. Bushing-reaction shaft
9. Sleeve
10. Flange bolt

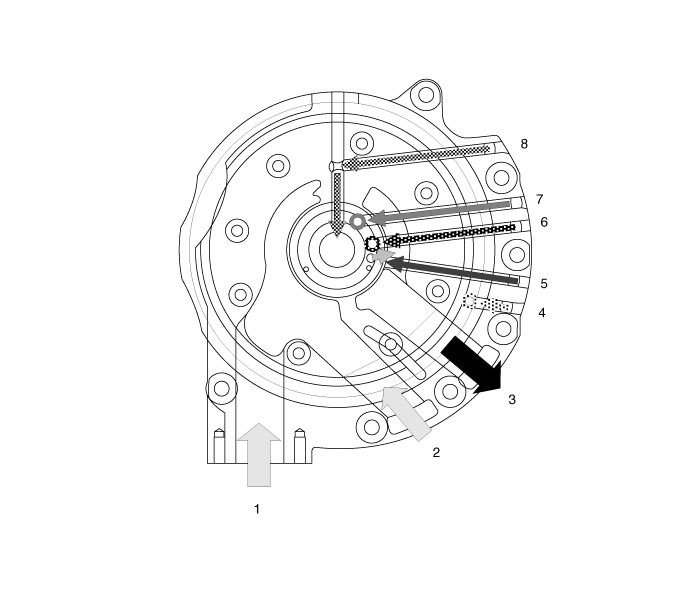

Oil Pump Operation Flow

1. Inhale (Oil filter)
2. Inhale (Valve body)
3. Outlet
4. 26/B operation pressure

5. 35R/C operation pressure
6. Lubrication
7. Lock up clutch operation pressure
8. Lock up clutch cancellation

Oil Pump Description and Operation

Description The oil pump is built-in as a single unit with the 2/6 brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the trans ...

Fluid Components and Components Location

Components Location 1. Injection hole (eyebolt)2. Oil level plug3. Oil drain plug ...
