Hyundai Tucson: Parking Brake System / Parking Brake Assembly Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / Parking Brake System / Parking Brake Assembly Components and Components Location

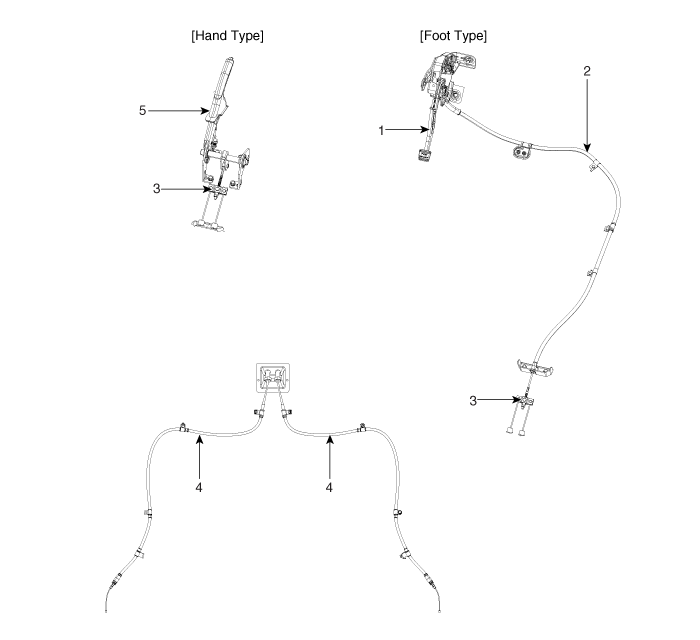

Components (1)

1. Parking brake pedal
2. Front parking brake cable (Foot type olny)
3. Equalizer assembly
4. Rear parking brake cable
5. Parking brake lever assembly

Components (2)

1. Back plate
2. Strut spring
3. Strut
4. Shoe and lining
5. Shoe guide
6. Returm spring
7. Adjuster
8. Return sping
9. Cup washer
10. Shoe hold down spring
11. Shoe hold down pin

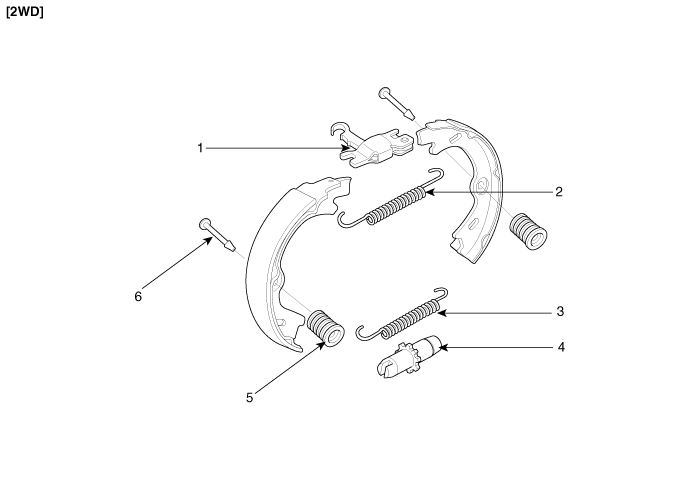

Components (3)

1. Operating lever
2. Upper spring
3. Lower spring
4. Adjuster
5. Shoe hold down spring
6. Shoe hold down pin

Parking Brake System
...

Parking Brake Assembly Repair procedures
Removal Parking Brake Pedal [Foot type] 1. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 2. Remove the junction box. (Refer to Body Electrical System - "Fuses and Relays") ...
